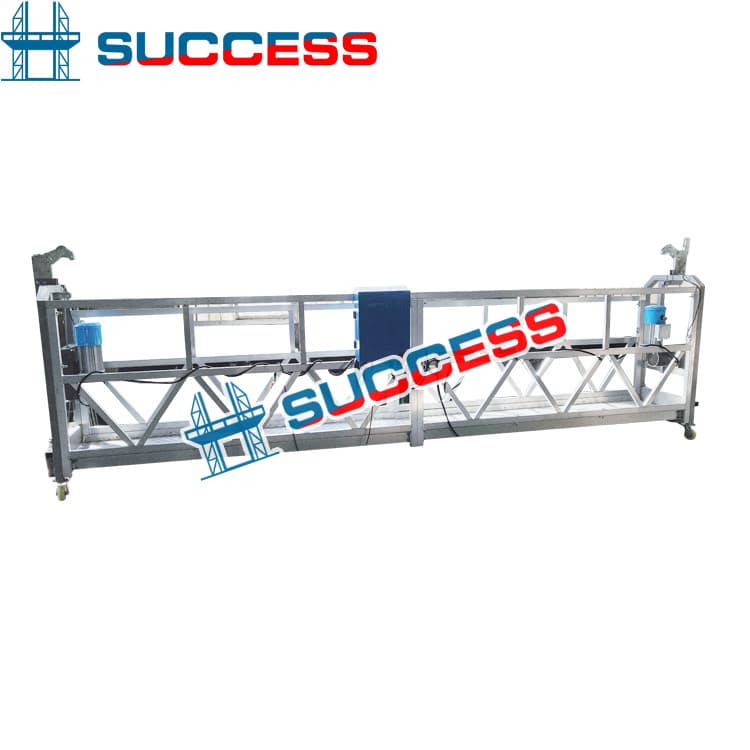

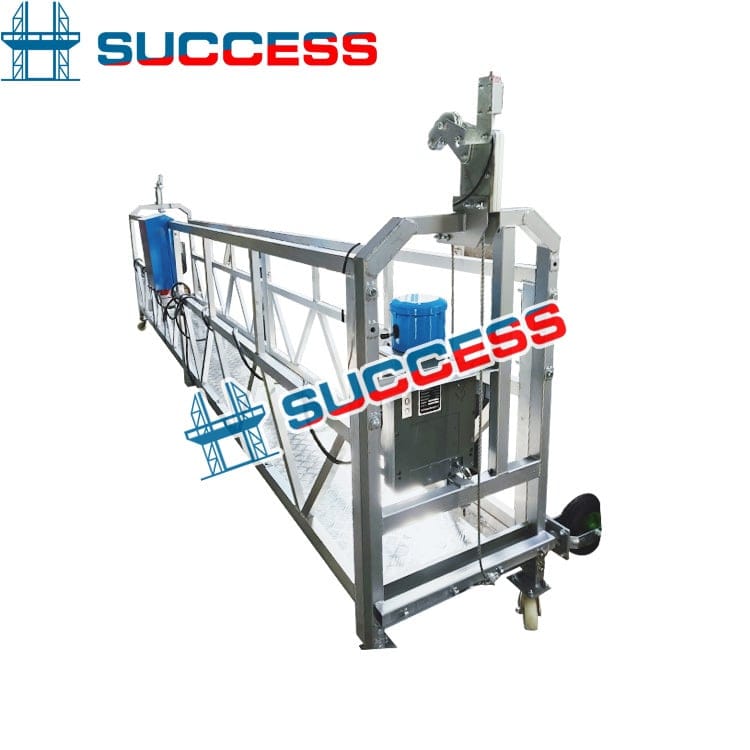

ZLP Suspended Platform
Temporary Suspended Platforms for Project Access
Modular powered access that can be reconfigured as a project progresses.
| Models | ZLP500 / ZLP630 / ZLP800 / ZLP1000 |
|---|---|
| Rated loads | 500 / 630 / 800 / 1000 kg |
| Structure | Painted steel, galvanized steel or aluminum |
Product role and applications
Temporary suspended access suits work organized around a building project rather than a permanently installed facade machine. Modular sections allow the platform arrangement to be specified for the job. Relocation involves another installation assessment; previous use on one building does not establish suitability for the next.
Structure and compatibility
End stirrups connect the platform arrangement to the lifting equipment. Working ropes, safety ropes and the power cable have different functions and routing requirements. For repeated deployment, component identification and condition records help keep matched parts together and identify what needs inspection before reassembly.
Features in practical use
A component-based temporary system makes identification of sections, ropes and replacement parts important over its service life. Keeping a matched equipment list with each deployment helps procurement and maintenance teams distinguish reusable components from items requiring replacement or further inspection.
Specifications
| Models | ZLP500 / ZLP630 / ZLP800 / ZLP1000 |
|---|---|
| Rated loads | 500 / 630 / 800 / 1000 kg |
| Structure | Painted steel, galvanized steel or aluminum |
Key features
- Modular sections and end stirrups
- Working ropes, safety ropes and power cable
- Spare-parts packages for ongoing maintenance
Technical guide
Configuration explained
Relocation changes the supporting structure, access route and installation geometry even when the deck is reused. Keep matched component identification with the equipment. The next installation needs its own review of support, ropes, power and condition; an earlier project is not approval for the new location.
- Supporting structure
- Suspension arrangement
- Hoists and working ropes
- Work platform and carried load
Plan the equipment scope for a temporary installation
For equipment that will be assembled for a project and later moved, define the section arrangement, rope and cable lengths, suspension components and replacement-parts package. These are configurations of the ZLP range, not a separate capacity series.
Information to include in your inquiry
Plan the sequence of work areas and how often the platform will be relocated. Include storage space, transport access and the component inventory in the equipment request. This helps distinguish the initial installation scope from parts needed for later configurations.
What changes the buying decision
Temporary access is a project-planning choice rather than a separate load class. Consider how equipment reaches the roof, where it can be assembled and how often it moves between elevations. Include dismantling and storage in the scope. A temporary setup still requires a suitable supporting structure and an approved configuration for each location.
Questions and answers
Is “temporary” a different ZLP model?
No. It describes the installation use. Compare ZLP capacities on the platform systems page, then specify the equipment needed for your project.
Which records help when equipment is reused on another project?
Keep component identification, inspection and maintenance records together. Review their condition and the new installation requirements before reuse.
Does a previous installation establish suitable rope lengths for the next site?
No. Specify the new operating height and installation route. Confirm the rope and cable requirements for that location.
