ZLP Suspended Platform

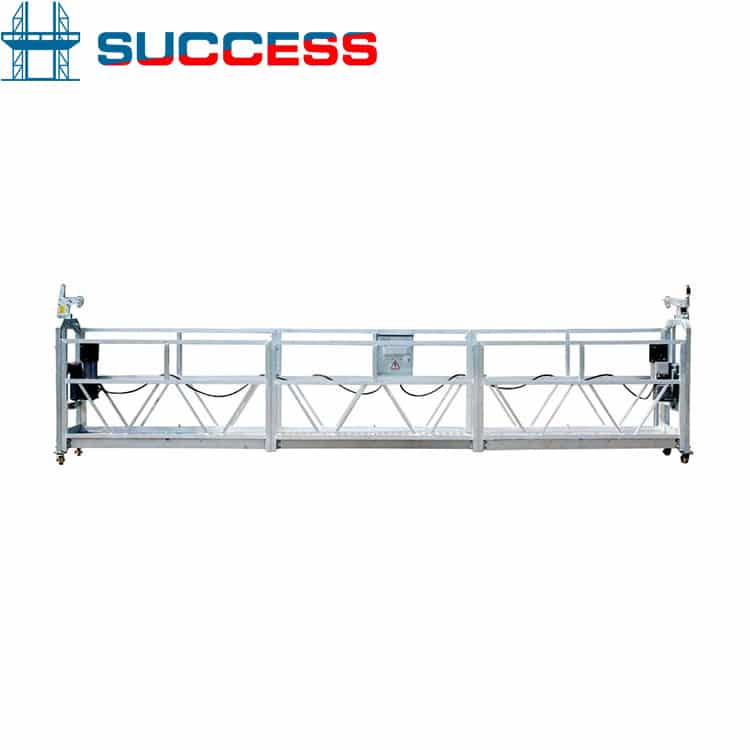

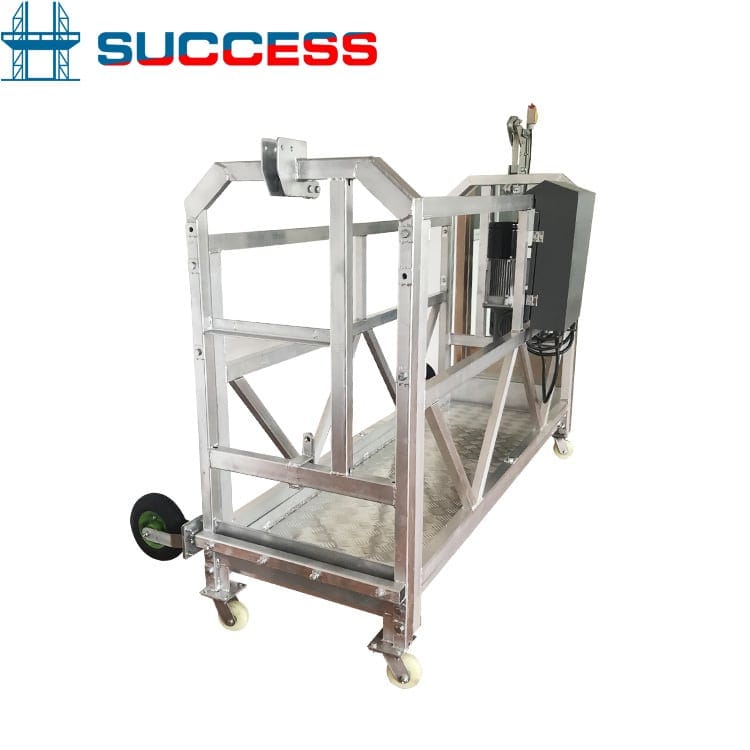

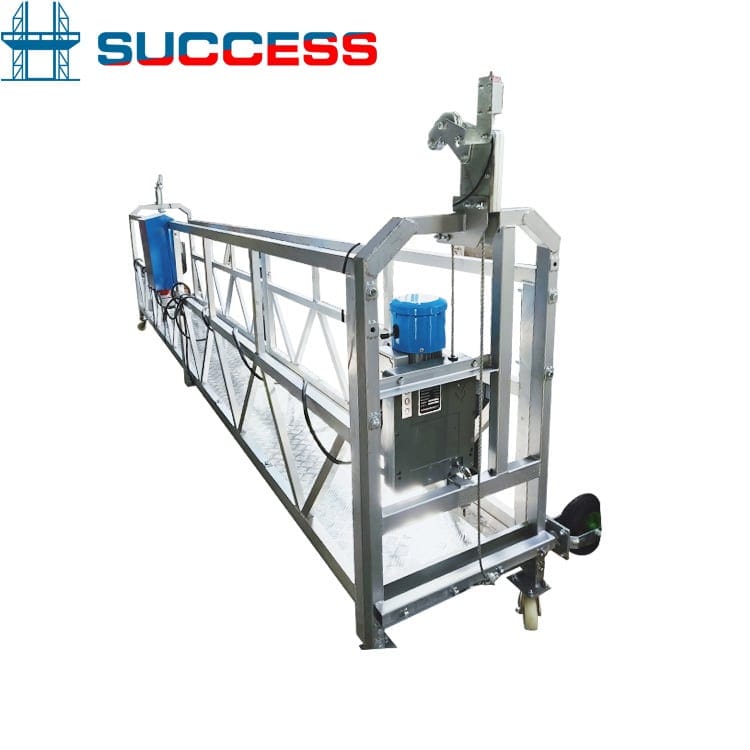

Aluminum Suspended Platforms for Facade Access
Modular aluminum sections for repeated assembly and facade access.
| Material | Aluminum alloy |
|---|---|
| Rated load options | 500 / 630 / 800 / 1000 kg |
| Voltage | Project configuration |
Product role and applications
This page focuses on aluminum platform construction rather than a separate lifting principle. Aluminum sections can make component handling easier during assembly and relocation. Material choice should therefore be considered alongside handling requirements, surface exposure and the selected load configuration, not as a substitute for a capacity rating.
Structure and compatibility
Platform sections, end supports and hoist mounting points form a connected assembly. Their connections must be compatible with the proposed suspension and safety equipment. Aluminum construction does not imply maintenance-free use, and parts from different platform systems should not be assumed interchangeable.
Features in practical use
Aluminum is particularly relevant when platform sections must be handled during assembly or site changes. Compare the weight and connection details of the actual sections, not only the material name. The lifting and safety functions still belong to the complete system.
Specifications
| Material | Aluminum alloy |
|---|---|
| Rated load options | 500 / 630 / 800 / 1000 kg |
| Voltage | Project configuration |
| Platform length | Project configuration |
Key features
- Aluminum sections for easier handling
- Electric hoists and automatic safety locks
- Roof suspension mechanism and counterweights
Technical guide
Configuration explained
Material choice alone does not increase the permitted load. Compare actual section weights, connection details and the complete rated assembly. Aluminum can change handling during assembly, but hoist interfaces, compatible fasteners and suspension requirements still need the same configuration review as the steel alternative.
- Supporting structure
- Suspension arrangement
- Hoists and working ropes
- Work platform and carried load
Plan for repeated assembly and relocation
The aluminum option addresses handling of platform sections during assembly and transport. Compare the chosen material with painted or galvanized steel, while checking the rated load and layout of the selected ZLP configuration separately.
Information to include in your inquiry
For repeated relocation, specify how sections will be transported, assembled and stored. Aluminum identifies the platform material; it does not establish the load rating of the assembled system. Compare the selected length and capacity with the corresponding steel configuration.
What changes the buying decision
Material choice affects handling and maintenance as well as purchase cost. Ask for the assembled platform weight and surface treatment rather than assuming a fixed weight saving over steel. Coastal exposure, cleaning chemicals, storage conditions and the frequency of relocation help define the material specification; the approved load rating still governs use.
Questions and answers
Does choosing aluminum change the rated load automatically?
No capacity change should be assumed from material alone. Request the specification for the exact aluminum platform and matching hoists.
Can the weight of an aluminum platform be confirmed from its length?
Not from length alone. Request section and assembled weights for the exact deck, end supports and selected equipment.
Can aluminum sections be combined with an existing steel platform?
Do not assume interchangeability. Connection geometry, end supports, hoist mountings and the complete load rating must be checked.
Is an aluminum platform maintenance-free?
No. Material choice does not remove inspection and maintenance requirements. Follow the instructions for the supplied assembly and its connections.
Which aluminum platform configuration should I request?
State required load, working height, deck length and power supply. Include roof photographs or drawings and the delivery destination.
