Glass Lifting Equipment

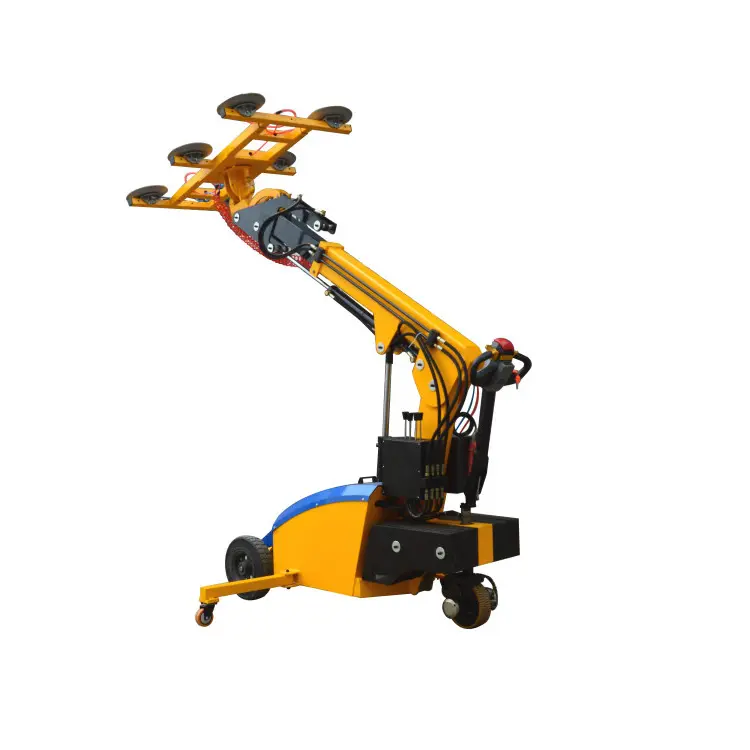

500 kg Electric Glass Vacuum Lifter for Panel Positioning
Mobile glass transport and positioning with vacuum suction and hydraulic lifting.
| Rated capacity | Up to 500 kg, subject to glass and pad conditions |
|---|---|
| Power | Rechargeable battery |
| Rotation | 360-degree manual |
Product role and applications
This electric vacuum lifter focuses on gripping and orienting glass using an onboard battery and pump. The published manual rotation and turnover motions describe different changes in panel position. It is useful to separate the gripping task from transport: the lifting interface and handling route still need to suit the installation.
Structure and compatibility
Adjustable suction-cup positions help arrange the contact points around the glass. The vacuum display reports the condition of the vacuum system; it does not by itself verify that the panel is suitable. Glass dimensions, surface condition, pad contact and the permitted load must be checked together before specifying the arrangement.
Features in practical use
Manual rotation and turnover allow different orientation changes during glass handling. Decide which motion the task requires and where the panel edges will travel. Repositioning the suction cups changes contact placement; it does not automatically increase the rated capacity.
Specifications
| Rated capacity | Up to 500 kg, subject to glass and pad conditions |
|---|---|
| Power | Rechargeable battery |
| Rotation | 360-degree manual |
| Turnover | 90-degree manual |
Key features
- Adjustable suction-cup positions
- Onboard vacuum pump and pressure display
- Specify glass dimensions, surface and required motions
Technical guide
Configuration explained
No. Rotation changes orientation within one plane; turnover changes the plane of the panel. The listed manual movements describe separate functions. Confirm the suspension interface, glass dimensions and pad layout. Moving suction cups does not increase the rated load, and a vacuum indication does not verify glass suitability.
- Handling interface or chassis
- Vacuum supply and monitoring
- Pads and surface contact
- Panel and placement route
Check glass dimensions and required movement
The glass-specific source lists up to 500 kg, 360-degree manual rotation and 90-degree manual turnover. State the glass dimensions and center-of-gravity information so the suction-cup positions can be reviewed.
Information to include in your inquiry
Describe the glass dimensions and the position in which it must be installed. Confirm whether the required movement is rotation, turnover or both. Review suction-cup placement and handling clearance with the actual glass details before treating the stated capacity as suitable.
What changes the buying decision
The listed 500 kg capacity is an upper value subject to the specified lifting conditions. Manual rotation and turnover describe different movements and do not establish suitability for every panel size. Send glass dimensions, thickness, surface details and the final installation angle so that pad arrangement and handling clearance can be reviewed.
Questions and answers
Does a glass weight below 500 kg establish suitability?
No. Panel shape, surface and suction-pad conditions also matter. Confirm the complete glass dimensions and the intended rotation and positioning operation.
Are 360-degree rotation and 90-degree turnover the same movement?
No. Rotation changes orientation in a plane; turnover changes the panel plane. Both listed movements are manual for this configuration.
Does the vacuum display confirm that the glass can be lifted?
Not by itself. Surface condition, glass dimensions, pad contact and the permitted loading arrangement must also be checked.
