Window Cleaning Machine, suspended gondola scaffolding for sale

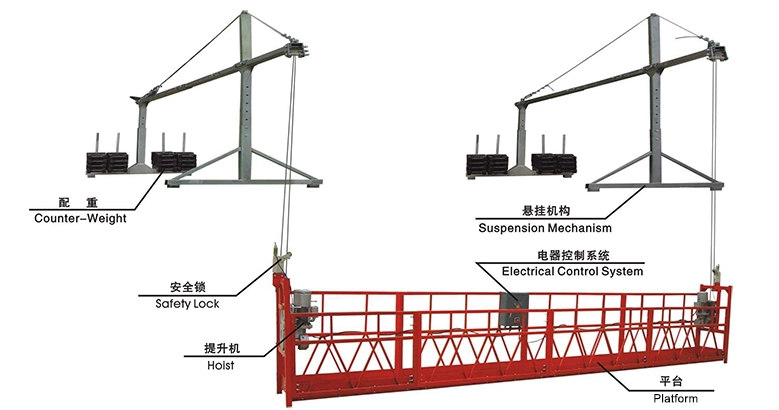

Suspended platform consists if suspension mechanism,hoist,safety lock,electric control box and platform.They have resonable structure and they are easy to operate.According to the actual needs,they are arbitrarily assembled and disassembled.Suspended platfrom applies to exterior wall construction,decoration,cleaning and maintance of high-rise buildings.
|
Item
|
type and parameter of suspended platform
|
|||
|
model of suspended platform
|
ZLP 800
|
ZLP 630
|
||
|
lifting speed
|
8-10m/min
|
9-11m/min
|
||
|
size of platform (lenght * width)
|
(2.5mx3)x0.76m
|
(2mx3)x0.76m
|
||
|
steel wire rope
|
structure：6x19W+1WS-8.3 Minimum breaking pull force：65KN
|
structure：4x31SW+NF-8.3 Minimum breaking pull force：53KN
|
||
|
hoist
|
type
|
LTD80
|
LTD63
|
|
|
Coiling mechanism
|
α type
|
|||
|
Rated lifting power
|
8KN
|
6.3KN
|
||
|
motor
|
type
|
YEJ90LB-4
|
YEJ90L-4
|
|
|
power
|
1.8KW
|
1.5KW
|
||
|
voltage
|
AC380V
|
|||
|
braking torque
|
15.2NM
|
|||
|
safety lock
|
type
|
Swing arm type anti tilt
|
||
|
model
|
LS30
|
LS30
|
||
|
suspension mechanism
|
quantity
|
2 sets
|
||
|
adjustable height
|
1.15-1.75m
|
|||
|
Protruding length of front beam
|
1.1-1.7m(1.5m and above 1.5m must reduce the loading weight)
|
|||
|
quality
|
suspension platform weight (include hoist,safety lock,motor box)
|
535kg(steel material) 380kg(aluminum material)
|
480kg(steel material) 340kg(aluminum material)
|
|
|
suspension mechanism weight
|
2x175kg
|
|||
|
counter weight
|
1000kg
|
900kg
|
||
|
full machinery weight
|
2000kg(steel material) 1840kg(aluminum material)
|
1790kg(steel material) 1650kg(aluminum material)
|
||
|
suspended paltform work condition
|
temperature -20℃~+40℃
|
|||
|
relative humidity ≤90%（25℃）
|
||||
|
voltage deviate ±5%
|
||||
|
Gust wind force≤8.3m/s(Equivalent to the 5 stage wind）
|
||||
Quick Details
Model Number: ZLP630
Application: building construction
Name: Suspended Platform
Color: Customized
Rated load: 630kg/ 800kg/ 1000kg
Voltage: 220V/380V/415V
Certificate: ISO
Type: Suspended Working Platform Equipment
Surface treatment: Powder Coatingn or galvanzied
Material: Galvanized Steel
steel wire rope size: 8.3mm
