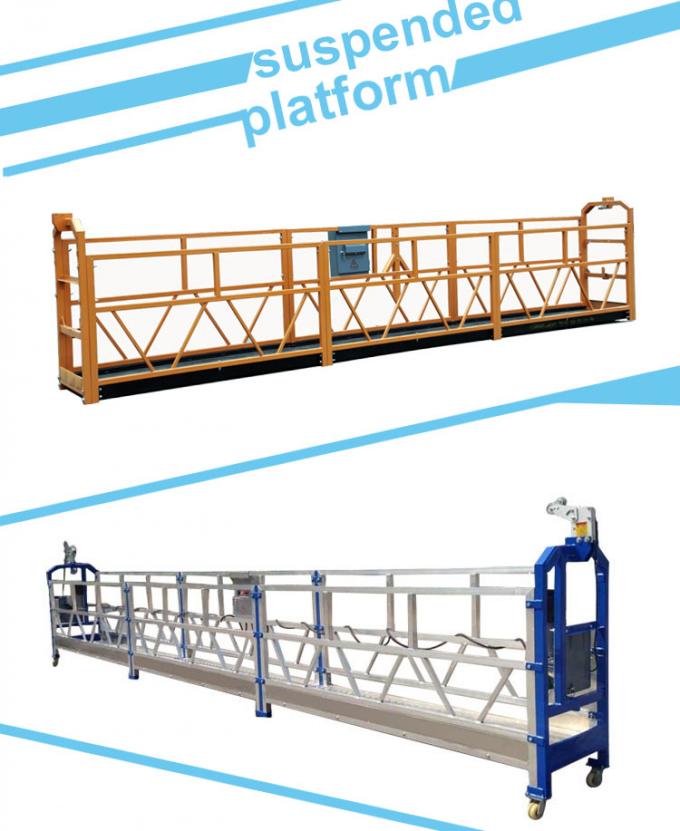

Aluminum Swing Stage Gondola Platform
An aluminum swing stage gondola provides a lightweight modular cradle for facade cleaning, painting and repair.
Product Feature
Main Usage:
A. Cleaning work platform of building walls, glasses, external walls, large chimney, large tanks, dams etc.
B. Painting and decoration work platform of building walls, glasses, external walls, large chimney, large tanks, dams etc.
C. Repair and maintenance work platform of building walls, glasses, external walls, large chimney, large tanks, dams etc.
D. Widely applied to various works of building walls, glasses, external walls, large chimney, large tanks,dams etc.
| Property Model No. | ZLP500 | ZLP630 | ZLP800 | ZLP1000 | |
| Rated load(kg) | 500 | 630 | 800 | 1000 | |
| Lifting speed(m/min) | 9～11 | 9～11 | 8～10 | 8~10 | |
| Motor power(kw) | 2×1.5 50HZ/60HZ | 2×1.5 50HZ/60HZ | 2×1.8 50HZ/60HZ | 2×2.2 50HZ/60HZ | |
| Brake torque(Km) | 16 | 16 | 16 | 16 | |
| Steel rope angle adjusting range(°) | 3°- 8° | 3°- 8° | 3°- 8° | 3°- 8° | |
| Distance between two steel rope(mm) | ≤100 | ≤100 | ≤100 | ≤100 | |
| Rated stretch of front beam(mm) | 1500 | 1500 | 1500 | 1500 | |
| Suspending platform | Locking | Aluminum alloy | Aluminum alloy | Aluminum alloy | Aluminum alloy |
| Nr.Of platform rack | Single rack | Single rack | Single rack | Single rack | |
| Nr.Of platform | 2 | 3 | 3 | 3 | |
| L×W×H(mm) | (2000×2)×690×1300 | (2000×3)×690×1300 | (2500×3)×690×1300 | (2500×3)×690×1300 | |
| Weight(kg) | 350 Kg | 375 Kg | 410 Kg | 455kg | |
| Suspending mechanism(kg) | 2×175 Kg | 2×175 Kg | 2×175 Kg | 2×175 Kg | |
| Counterweight(kg) optional | 25×30pcs | 25×36pcs | 25×40pcs | 25×44pcs | |
| Diameter of steel rope(mm) | 8.3 | 8.3 | 8.6 / 9.1 | 8.6 / 9.1 | |
| Max Lifting height(m) | 300 | 300 | 300 | 300 | |
| Motor rotation speed(r/min) | 1420 | 1420 | 1420 | 1420 | |
| Voltage(v) 3PHASES/Single Phase | 220V/380V/ 415V | 220V/380V/ 415V | 220V/380V/ 415V | 220V/380V/ 415V | |
Advantages:
The max lifting height can be up to 300m;
We can supply customized platform to meet different requirements from customers;
Professional quality, competitive price, fast delivery and considerate service etc;
Certification: ISO & CE;
Features: it is easy to be disassembly and move, the size of platform can be adjusted freely, safety, high quality components, 24 hours on line.
FAQ:
1. Q: How do I pay for my purchase order?
A: T/T, L/C at sight, Escrow, Paypal, West Union
Q: How can I get sample how long will it takes?
A: Because this is large scale construction equipment, we do not supply samples for free. We would provide didscount based on the order volume.
Q: What’s the MOQ?
A. Our MOQ is 1 set.
Q: What’s the delivery time:
A: It will take less than 7 days to finish one order, But the exact time is according to actual situation.
Q: Can I have my own customized product?
A: Yes, we attach great importance to quality control. All products must be strictly tested before launching to the market. Our products are CE and ISO9001 certified.
Q: Can I have my own customized product?
A. Yes, your customized requirement for color, logo, design, package, carton mark etc is welcome.
Q: How about the warranty?
A: One years warranty. If quality problems occur, please feel free to contact us.
Modular Aluminum Cradle
Confirm the exact model, nameplate data, dimensions and intended application before ordering or installation. Safety-critical components must be matched to the approved complete system.
Ordering Information
- Equipment model and clear nameplate photos
- Required load, dimensions and working height
- Voltage, phase and frequency
- Existing component and mounting details

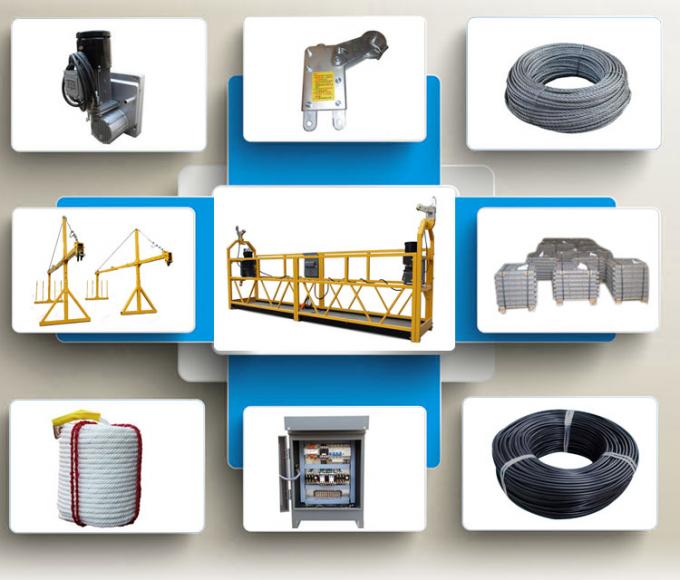

Browse suspended platform systems, review spare parts, or request a compatibility check. Follow the manufacturer’s instructions and applicable work-at-height controls.
For site planning, also review the applicable local rules and the OSHA suspended scaffold requirements.
