Painted Aluminum Suspended Wire Rope Platform

A painted aluminum suspended wire rope platform combines lightweight modular platform sections with a protective surface finish. The available 500, 630, 800 and 1000 kg classes allow the system to be selected around the required working load and approved platform arrangement.

Painted Aluminum Suspended Wire Rope Platform 500kg / 630kg / 800kg / 1000kg

Descriptions:

Competitive advantages:

1.Absolutely guarantee life safety during Aerial working

Safety lock fasten the steel rope immediately once the suspended platform tilts or the steel rope slips out of the hoist;Electric control system is designed with leakage protection, over-heat protection, current overload protection and brake stop;

Good-quality steel wire rope, safety rope and cable.

2. Stable performance: raise up and lower down smoothly

3. Modular design. Easy to disassemble, assemble operate and maintain.

4. Lifting height can be adjusted according to requirement (Maximum 300 Meters)

5. Working voltage and frequency can be adjusted (220V/380V/415V etc.)

6. Suspended platform for special usage can be customized (circular, L shape, U shape, etc)

7. Professional quality, competitive price, fast delivery, good services.

Applications:

1.Cleaning and maintaining of the exterior wall of high-rise building.

2.Painting, decoration and refurbishing of exterior walls.

3. Installation projects and other construction working of outer walls of high-rise building.

4. Aerial working of ship, large tower, bridge, dams and large chimneys.

5. Install and maintain for high-rise building elevator hoistway, shipbuilding industry, seagoing vessel, warships welding maintain.

Technical Parameters:

Property Model No.		ZLP500	ZLP630	ZLP800	ZLP1000
Rated load(kg)		500	630	800	1000
Lifting speed(m/min)		9～11	9～11	8～10	8~10
Motor power(kw)		2×1.5 50HZ/60HZ	2×1.5 50HZ/60HZ	2×1.8 50HZ/60HZ	2×2.2 50HZ/60HZ
Brake torque(Km)		16	16	16	16
Steel rope angle adjusting range(°)		3°- 8°	3°- 8°	3°- 8°	3°- 8°
Distance between two steel rope(mm)		≤100	≤100	≤100	≤100
Rated stretch of front beam(mm)		1500	1500	1500	1500
Suspending platform	Locking	Aluminum alloy	Aluminum alloy	Aluminum alloy	Aluminum alloy
	Nr.Of platform rack	Single rack	Single rack	Single rack	Single rack
	Nr.Of platform	2	3	3	3
	L×W×H(mm)	(2000×2)×690×1300	(2000×3)×690×1300	(2500×3)×690×1300	(2500×3)×690×1300
	Weight(kg)	350 Kg	375 Kg	410 Kg	455kg
Suspending mechanism(kg)		2×175 Kg	2×175 Kg	2×175 Kg	2×175 Kg
Counterweight(kg) optional		25×30pcs	25×36pcs	25×40pcs	25×44pcs
Diameter of steel rope(mm)		8.3	8.3	8.6	8.6
Max Lifting height(m)		300	300	300	300
Motor rotation speed(r/min)		1420	1420	1420	1420
Voltage(v) Single Phase / 3Phases		220V/380V/ 415V	220V/380V/ 415V	220V/380V/ 415V	220V/380V/ 415V

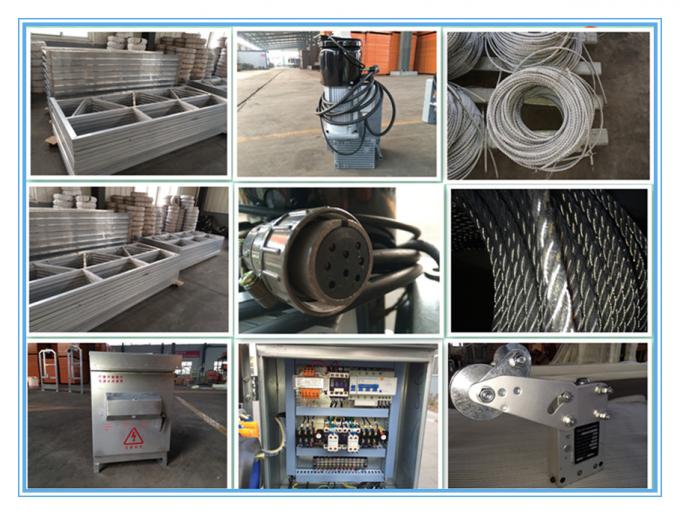

Main parts:

Detailed Product Description

Material: Steel / Aluminum Alloy
Colors: Red, Yellow, Orange, Black, Silver (customized)
Rated Load: 500kg, 630kg, 800kg, 1000kg
Motor Power: 1.5kw, 1.8kw, 2.2kw
Motor Rotation Speed: 1420r/min
Voltage: Single Phase / Three Phases (380V/220V/415V…)

Load Class and Aluminum Platform Selection

Confirm the platform model, rated load, working height, platform length and destination power supply before ordering. The roof suspension arrangement and operating procedure must be reviewed for the actual project.

Verify hoist, safety-lock and wire-rope compatibility.
Calculate the complete working load, including people, tools and materials.
Inspect the platform and suspension mechanism before each shift.

Compare our suspended platform products, review available replacement parts, or send the project specifications. Work at height must follow the approved site method and applicable suspended scaffold requirements.
