anti-tilting safety lock for zlp suspended working platform - Suspended working platform,gondola suspended platform,gondola working platform

pretapgāšanās drošības slēdzene zlp piekarinātai darba platformai

Elektriskais vilces pacēlājs

Product Description LSF

1.Safety Standard: EN1808
2.The anti-Tilt Fall Arrester is automatically tripped when the angle of the rope or the platform exceeds 3-8°.
3.The integrated clamping jaw mechanism holds the rope and immediately stops the movement of the system.
4.It is designed for long platform with end stirrup.

he main parameters of Anti-Tilt Type Fall Arrester (LSF)
Modelis	LSF308	LSF309	LSF310
Nominālā slodze	630 kg	800 kg	1000 kg
Wire Rope Diameter	8,3 mm	9,1 mm	10,2 mm
Locking Distance	<100 mm	<100 mm	<100 mm
Cable Locking Angle	3°–8°	3°–8°	3°–8°

Īsa informācija

Izcelsmes vieta: Šanhaja, Ķīna (kontinentālā daļa)
Model Number:LSF

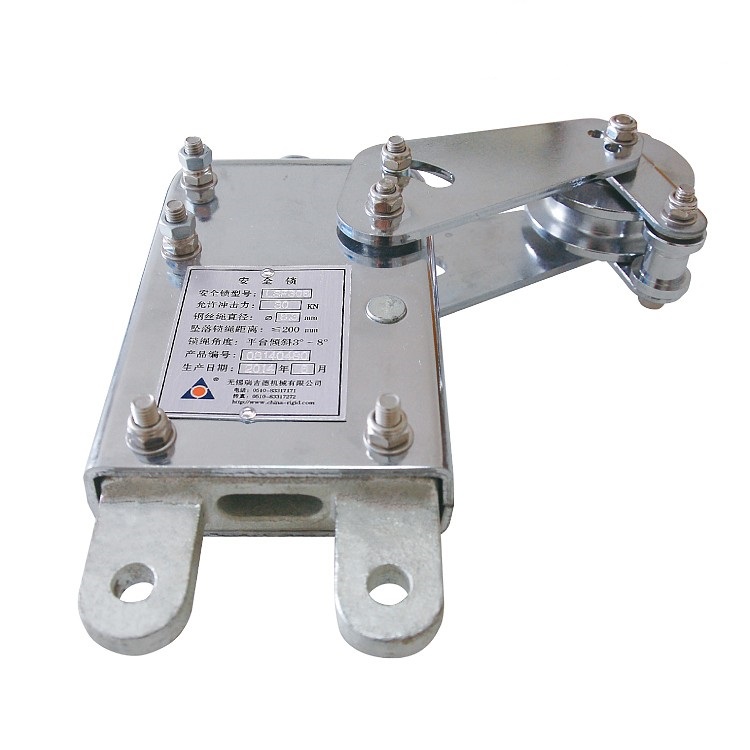

Name: Anti-tilting safety lock
Rated load: 630/800/1000KG
Type: Anti-tilting type
Cable Locking Angle: 3-8°
