Drošības slēdzene piekaramās platformas tērauda trošu drošības slēdzenei

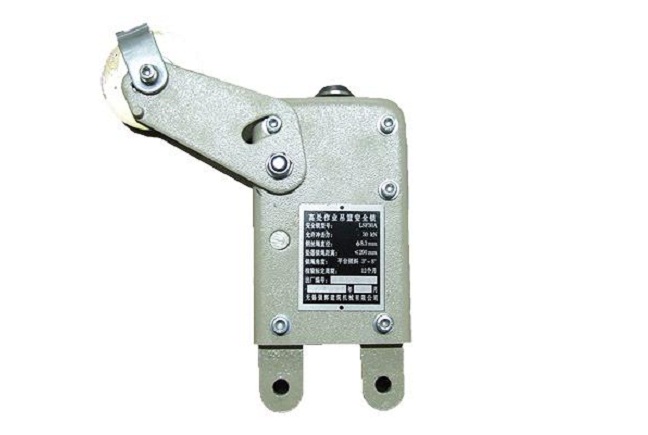

LSB30 safety lock is a separate mechanical unit that can automatically lock safety wire rope when the working wire rope is broken or suspended platform tilts to its limits.
Parameter – LSB30 Safety Lock
| Tips | LSB30 |
| Permissable impact force | 30 kN |
| Locking distance | <100 mm |
| Wire rope diameter | 8,3 mm |
| Kabeļa fiksācijas leņķis | 3°~8° |
When the leading steel rope appear stuck rope, broken rope, slide out of the hoist or the platform lean, the safety lock will locked the rope tight within 100mm length. When hoist or motor have work problem, can lock the safety steel rope manually.
Parameter – LSB20 Acentric Safety Lock
| Tips | LSB20 |
| Permissable impact force | 20 kN |
| Locking distance | ≤100 mm |
| Wire rope diameter | 8.6mm |
| Wire rope Locking speed | 1530m/min |
Component of the suspended platform
Suspended platform is mainly conmposed by suspension mechanism, hoist, safety lock, electric control box, working platform.
Its structure is reasonable and easy to operate. It can be make-up and break-out according to the actual need. The suspended platform is mainly used for refurbishment, decoration, cleaning and maintenance of high construction building
Īsa informācija
Izcelsmes vieta: Šanhaja, Ķīna (kontinentālā daļa)
Zīmola nosaukums: panākumi
Model Number: LSB30
Part name:safety Lock for Suspended platform steel rope safety Lock
Keywords: safety lock for rope
Krāsa: Sudraba
Material:Steel
Usage:Equipment
Size: 70mm
Suitable for: Security Storage
Type: Alarm Lock
Application: suspended platform
Sertifikācija: ISO9001
