electric suspended scaffold platform , aluminum alloy aerial work platform - Suspended working platform,gondola suspended platform,gondola working platform

Plataforma de andamio suspendido eléctrico, plataforma de trabajo aéreo de aleación de aluminio

Andamio suspendido eléctrico, plataforma de trabajo aéreo de aleación de aluminio

I.Suspended Platfonrm Identificatio

Suspended platform is a kind of aerial working equipment for loading people, by setting up suspension frame on the top of building, which is using steel wire rope along building’s vertical surface,and making up and down movement depends on electrical power.

Ⅱ.Main usages of suspended platform

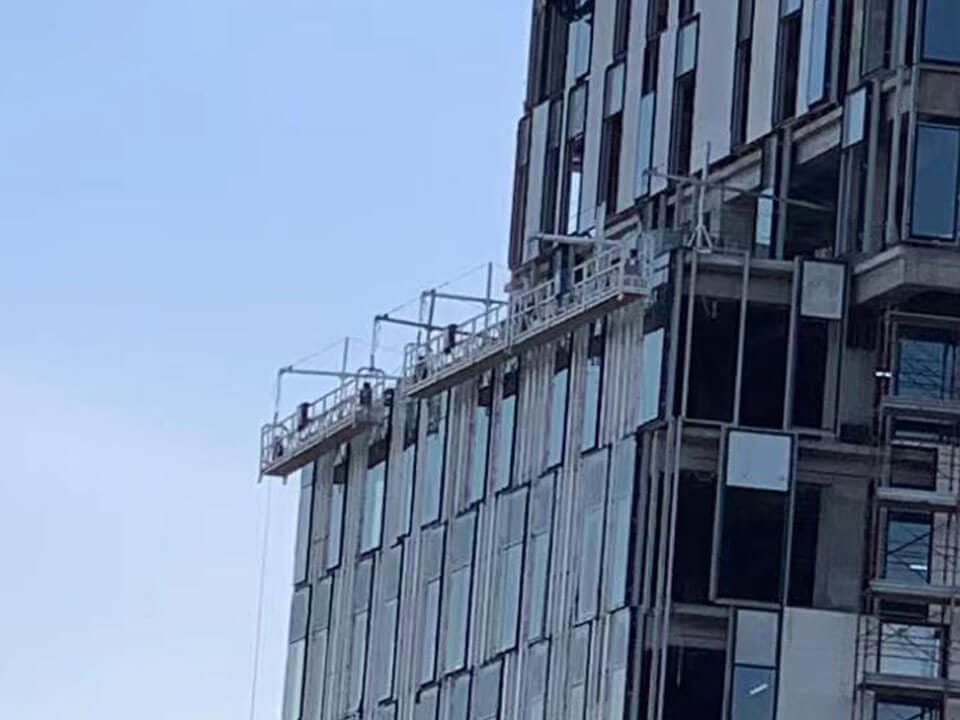

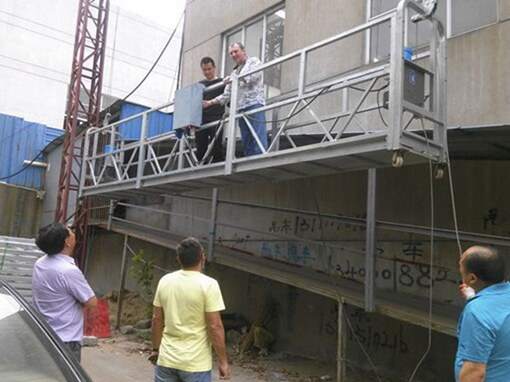

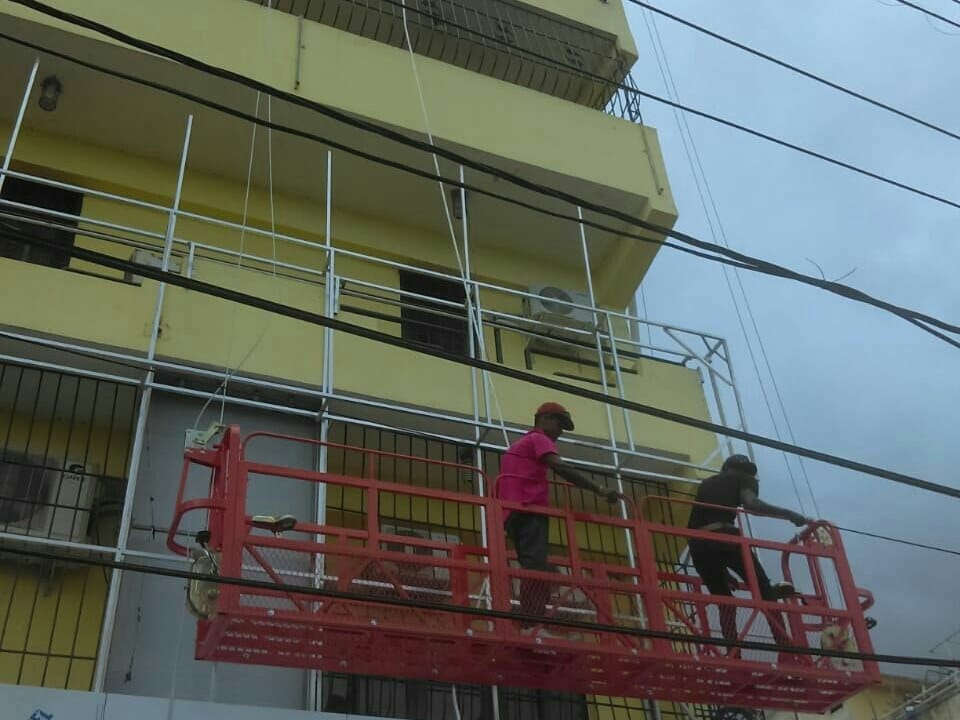

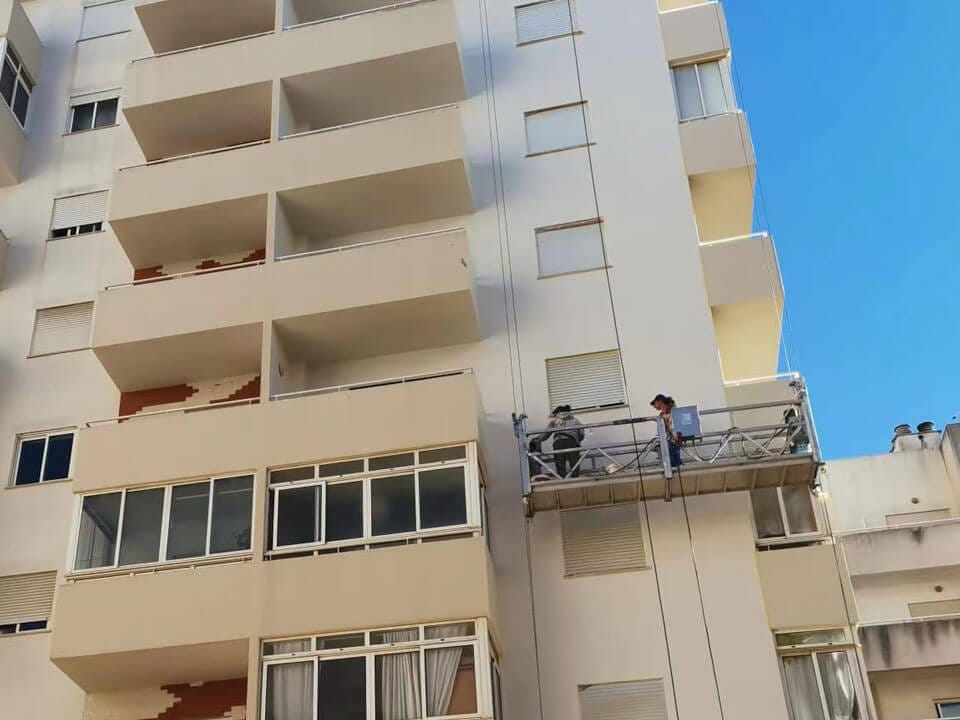

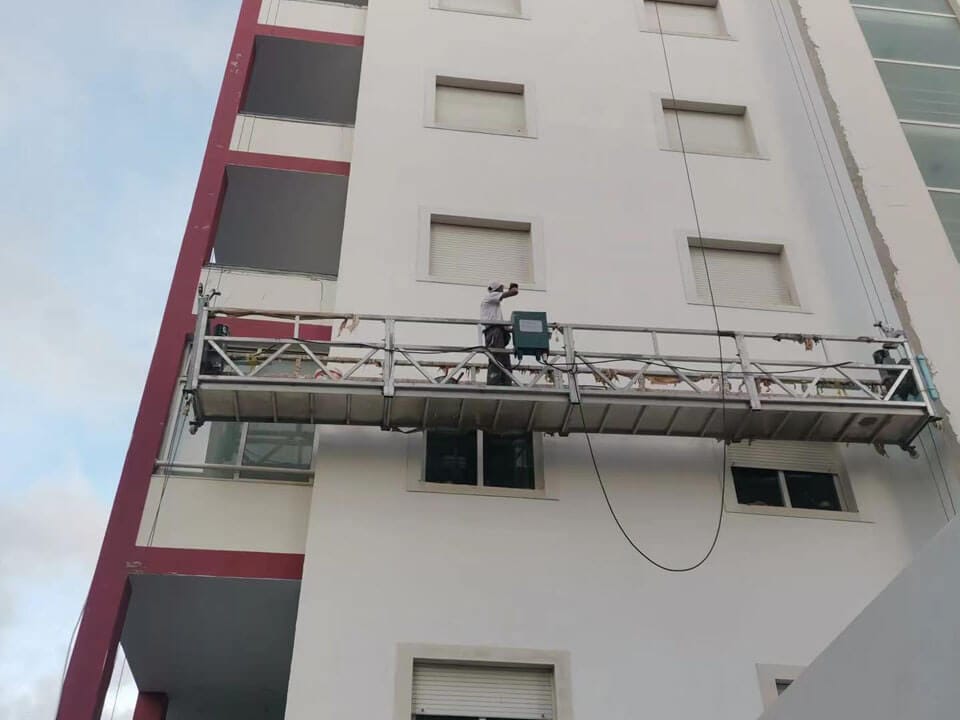

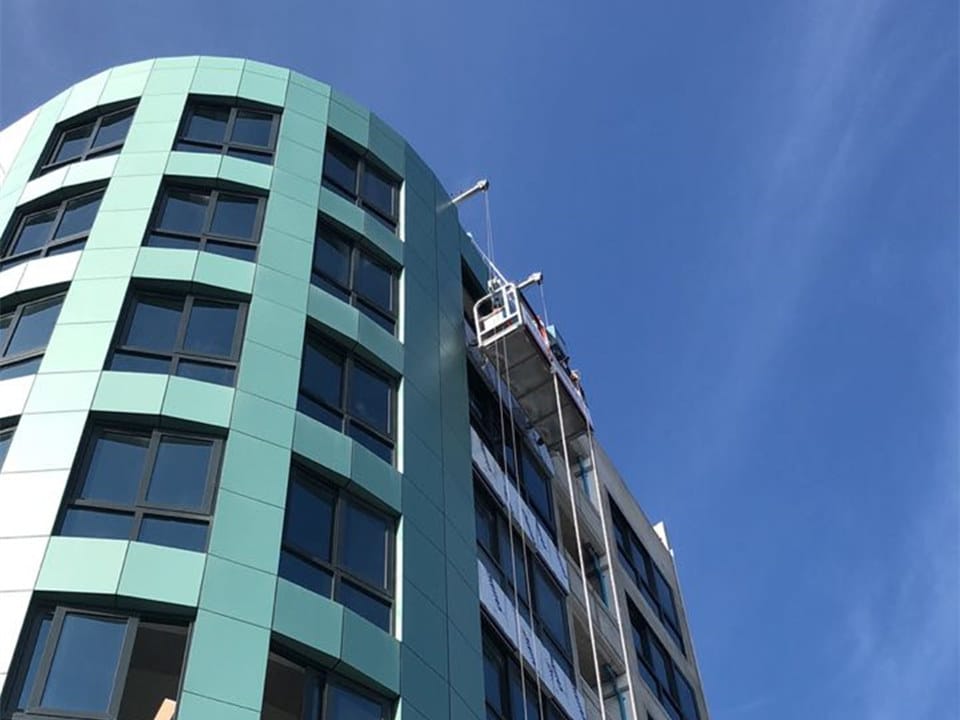

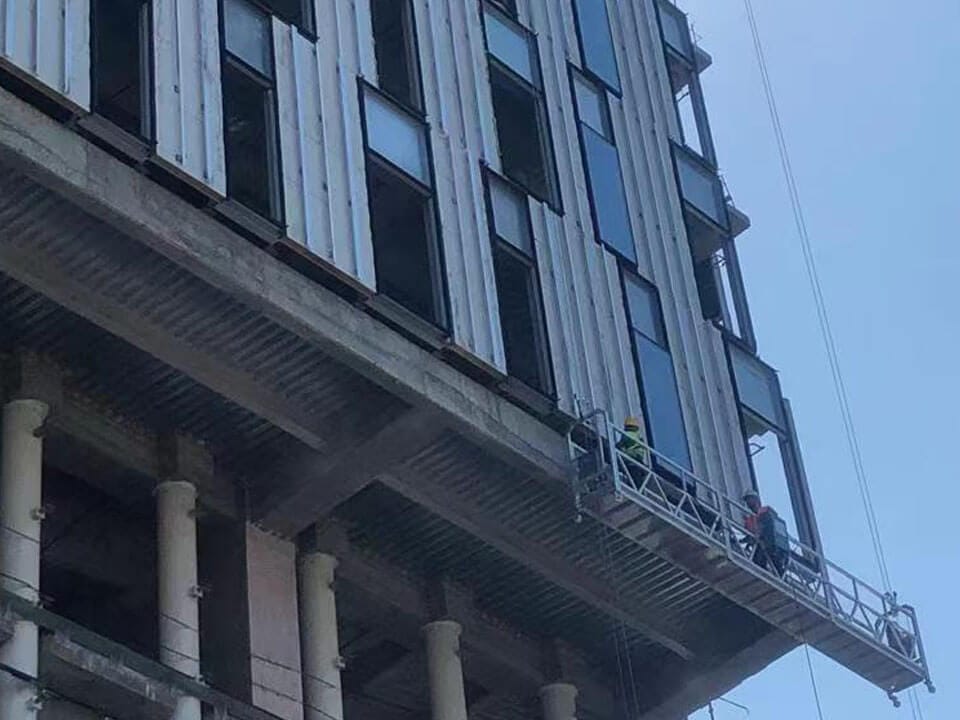

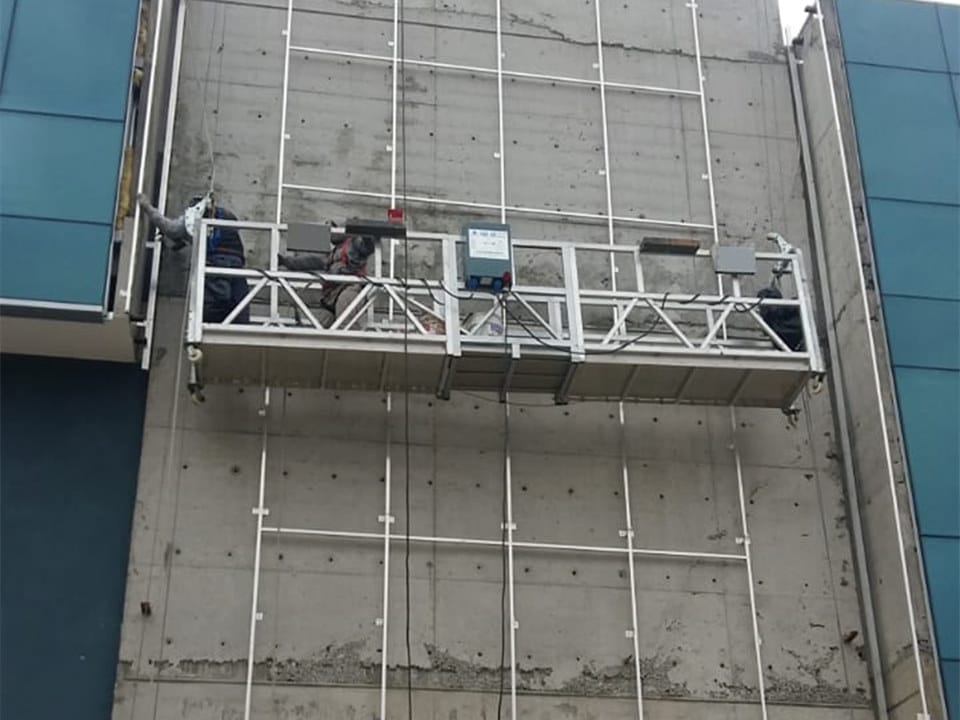

A)For exterior wall construction or decoration for tall building, or installing exterior components.

B) FOR exterior wall maintenance and cleaning.

C) For big project, for instance, construction, inspection and maintenance of big jar, chimney, dam, bridge, well frame.

D) Big vessel’s sealing, cleaning and painting.

E) For installing advertisement board in high place.

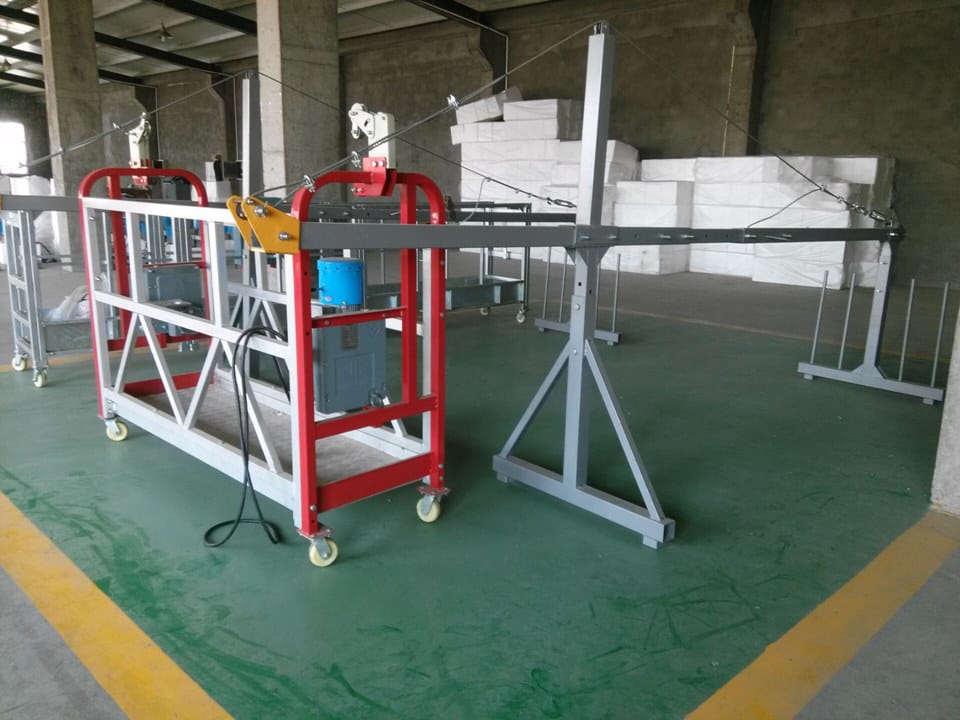

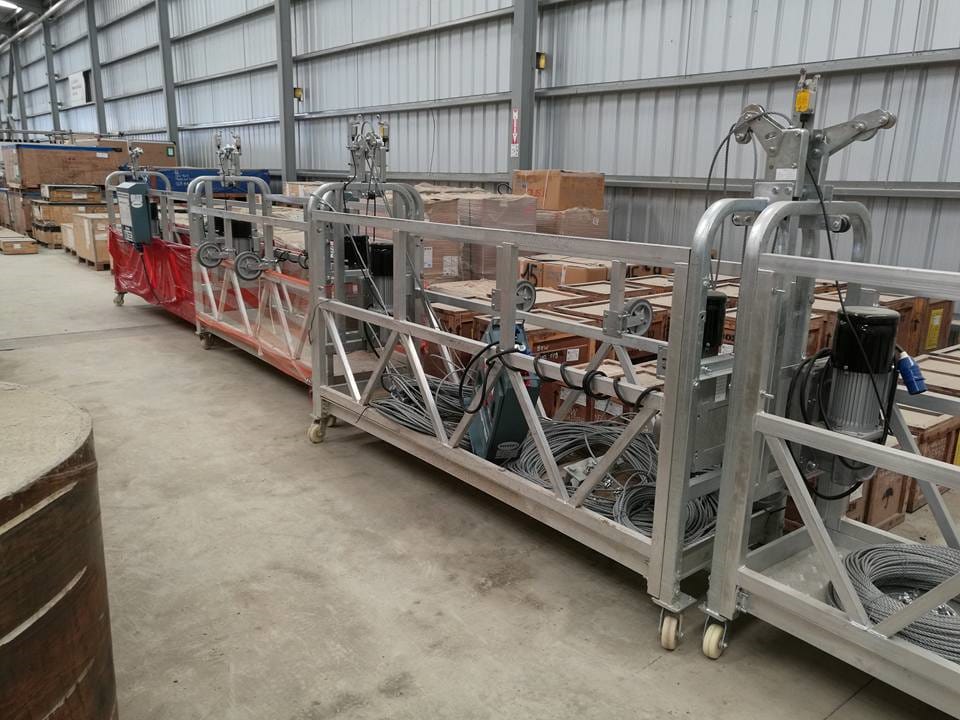

Ⅲ.Suspended platform’s type, material and conponents

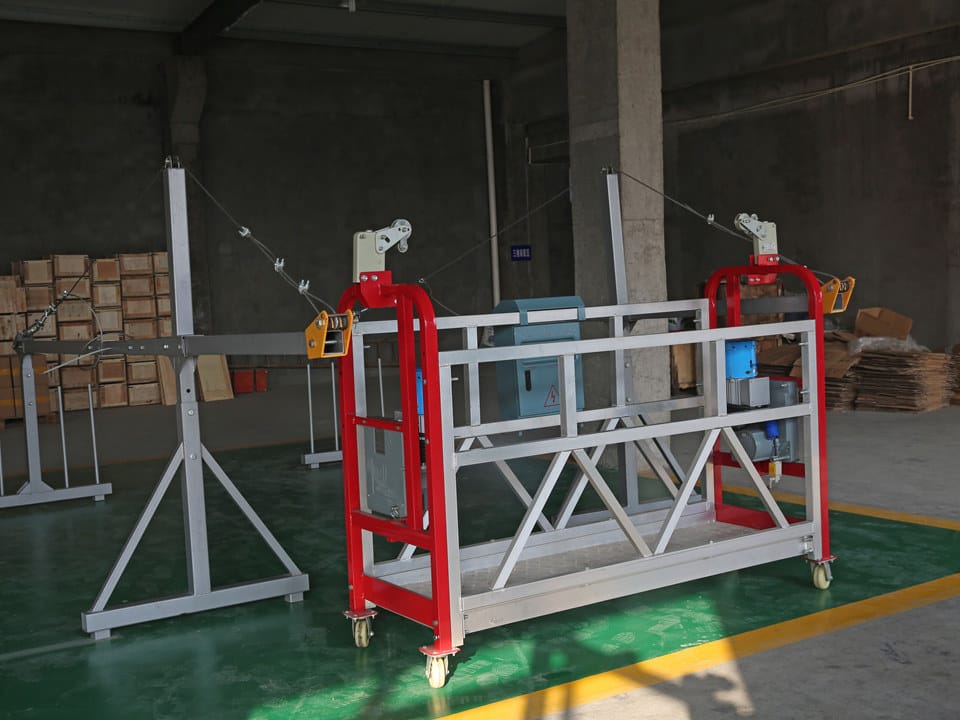

1. Platform, 2. Safe Lock 3. Suspension Machnism 4. counter weight, 5. Electric control system

I.Suspended Platfonrm Identificatio4

IIII Packing Details

V Whole set of basket parameters specification table and weight detail:

Property Model No.		ZLP500	ZLP630	ZLP800	ZLP1000
Rated load(kg)		500	630	800	1000
Lifting speed(m/min)		9～11	9～11	8～10	8~10
Motor power(kw)		2×1.5 50HZ/60HZ	2×1.5 50HZ/60HZ	2×1.8 50HZ/60HZ	2×2.2 50HZ/60HZ
Brake torque(Km)		16	16	16	16
Steel rope angle adjusting range(°)		3°- 8°	3°- 8°	3°- 8°	3°- 8°
Distance between two steel rope(mm)		≤100	≤100	≤100	≤100
Rated stretch of front beam(mm)		1500	1500	1500	1500
Suspending platform	Locking	Aluminum alloy	Aluminum alloy	Aluminum alloy	Aluminum alloy
	Nr.Of platform rack	Single rack	Single rack	Single rack	Single rack
	Nr.Of platform	2	3	3	3
	L×W×H(mm)	(2000×2)×690×1300	(2000×3)×690×1300	(2500×3)×690×1300	(2500×3)×690×1300
	Weight(kg)	350 Kg	375 Kg	410 Kg	455kg
Suspending mechanism(kg)		2×175 Kg	2×175 Kg	2×175 Kg	2×175 Kg
Counterweight(kg) optional		25×30pcs	25×36pcs	25×40pcs	25×44pcs
Diameter of steel rope(mm)		8.3	8.3	8.6 / 9.1	8.6 / 9.1
Max Lifting height(m)		300	300	300	300
Motor rotation speed(r/min)		1420	1420	1420	1420
Voltage(v) 3PHASES/Single Phase		220V/380V/ 415V	220V/380V/ 415V	220V/380V/ 415V	220V/380V/ 415V

Detailed Product Description

Material: STEEL, ALUMINUM ALLOY
Color: Red, Yellow, Green, Silver(Can By Customerized)
Finished: Painted, Hot Galvanized, Aluminum
Motor Power: 2*1.5, 2*1.8,2*2.2
Diameter Of Steel Rope: 8.3mm, 8.6mm, 9.1mm
Max Lifting Height: 300M
Voltage: 110/220/380/415/440/480
Motor Rotation Speed: 1420
