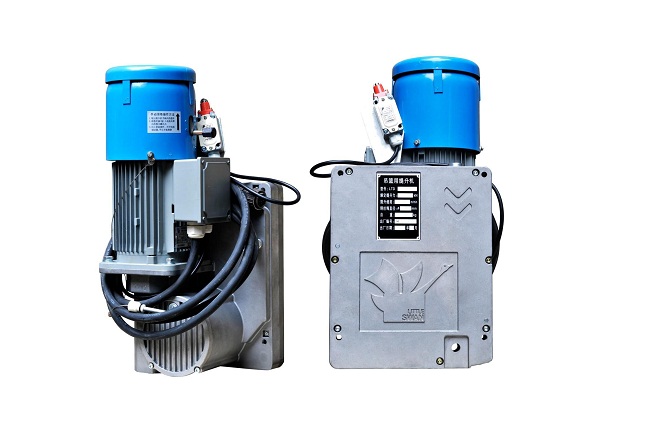

piekarināma platforma 3 fāžu motora elektriskā platformas pacēlājs
Specifikācijas
1.Construction Building Lifting Platform Motor Hoist ;
2.Model of hoist: LTD6.3 LTD8.0;
3.Net Weight:50kg;
Hoist Model | LTD 6.3 |
| Adjusted Specification | ZLP500,ZLP630 |
| Rated Lifting Load | 6,3 kN |
| Lifting Speed | 9–11 m/min |
| Motor Power | 1,5 kW |
Steel Wire Rope Dia. | 8,3 mm |
Hoist Model | LTD 8.0 |
| Adjusted Specification | ZLP800 |
| Rated Lifting Load | 8 000 000 |
| Lifting Speed | 8–10 m/min |
| Motor Power | 1,8 kW |
| Steel Wire Rope Dia. | 8.6mm |
Packaging & Shipping
MOQ:2 Pieces
Packing: In wooden cases,also we can customize for you!
Payment Term:TT or L/C
Supply Ability:6000 Pieces per month
Delivery Time:About 7 days.
Key Points:
1. Max lifting height: 300m
2. Main model: ZLP500, ZLP630, ZLP800 & ZLP1000;
3. Types: Painted, hot galvanized, aluminum;
4. Voltage: 220v/380V/415V 50/60HZ 3 phass;
5. Couterweight: Cement, cement with steel cover, Iron counterweight.;
6. H.S Code: 8428909090;
7. Certification: TUV, CE & ISO;
8. We can also customize for you.
Īsa informācija
Izcelsmes vieta: Šanhaja, Ķīna (kontinentālā daļa)
Zīmola nosaukums: panākumi
Model Number: LTD6.3 LTD8.0
Motor power: 2*1.5 /2*1.8kw/2*2.2kw
Max Lifting height: 300 m
Motora griešanās ātrums (apgr./min): 1420
Rated Load: 500kg/ 630kg/ 800kg/ 1000kg
Safety Rope Diameter: 18mm 20mm
Diameter of steel rope: 8.3mm 8.6mm 9.1mm
MOQ: 2 pieces
Packing: Wooden cases
Payment term: TT or L/C
Voltage: 220V,380V,400V,415V,440V ,
