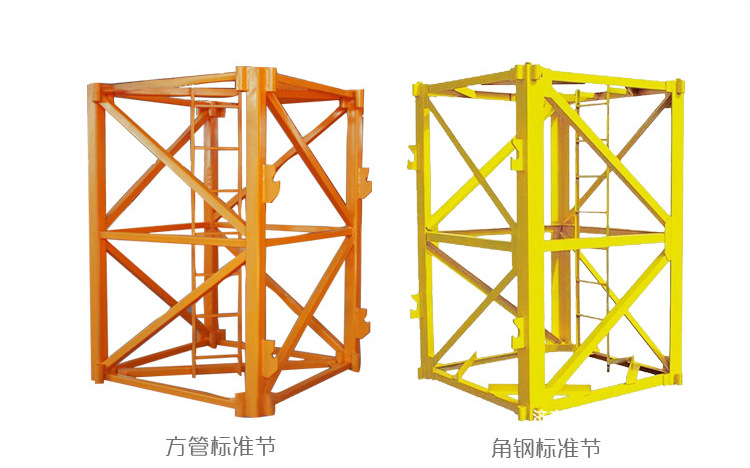

china manufacture self erecting tower crane mast section for use - Suspended working platform,gondola suspended platform,gondola working platform

Ķīnā ražota pašmontāžas torņa celtņa masta sekcija lietošanai

Ķīnā tiek ražota pašmontāžas torņa celtņa masta sekcija lietošanai

Advantages of China manufacture self erecting Tower crane in UAE

1. Over ten years of experience in supplying new self-erecting tower crane .

2. Export to more than 20 countries with CE/ISO Certificate.

3. Stationary/Fixed tower crane

4. Impeller blasting/rust protection paint

5. Advanced painting process

6. Robot welding line

7. New designed mast, can be used to Internal and external climbing

Specification

Rated Lifting Moment	1000KN.M
Rated Loading Capacity	6T
Max. Lifting Load	6T
Tip Load	1.3T
Max. Lifting Height	120m
Span	50m
Free standing height	40m
Rope length	400m
Slewing speed	0.6r/min
Power supply	380 V/50 Hz
Power Capacity	42.3Kw
Electric switch box	Šneidera
Working range	2.5-50m
Trolleying speed	20/40 m/min
Jacking up speed	0.55m/min
Topkit height	6.2m
Counter jib length	13m
Mast section	1.61.62.5m
Main material	∠135*10 mm(square steel)
Hoisting speed	(a=2) 80/40/8.5m/min ; (a=4) 40/20/4.25m/min

Īsa informācija

Feature: Tower Crane
Stāvoklis: Jauns
Application: Construction of Tall Buildings
Rated Loading Capacity: 6T
Rated Lifting Moment: 630kn.m
Maksimālā celtspēja: 6t
Max. Lifting Height: 140m
Span: 50m
Izcelsmes vieta: Šanhaja, Ķīna (kontinentālā daļa)
Model Number: QTZ63B(5013)
Certification: CE ISO9001 CCC
Warranty: 12 months
Pēcpārdošanas serviss: Inženieri ir pieejami tehnikas apkalpošanai ārzemēs
Color: As client’s requirements.
mast section: 1.6m*1.6m*2.5m or 1.6m*1.6m*2.8m
free-standing height: 30m
main chord: 160*160*14
Steel material: Q345B maganese steel
