karstā pārdošana SAJ50-2.0 pacēlāja lifta detaļu drošības pretkritiena drošības ierīce
Produkta apraksts

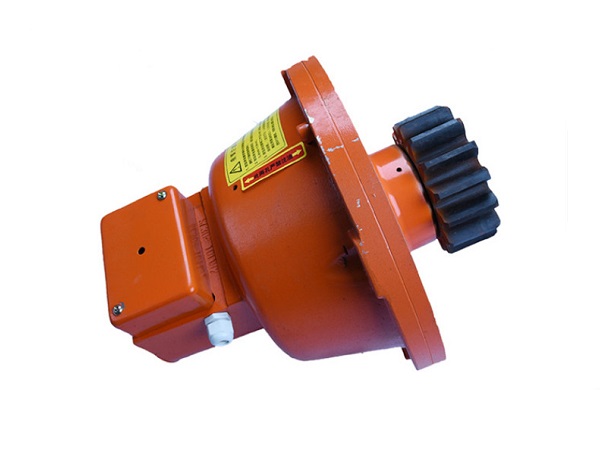

SAJ serials pinion and cone progressive safety device is the most important safety device in the pinion and rack builder’s hoist, which can prevent the cage running over speed, and effectively reduce the cage dropping accident.
SAJ40-1.2A anti fall safety device for construction hoist
The main products for the SAJ series of anti-fall safety device, model coverage SAJ02-1.0 ~ SAJ70-1.4, rated load 200kg ~ 7000kg, rated speed 0.5m / s ~ 2.5m / s; through type test certification, ISO9001 quality system certification and CE certification Wait.
If you need please contact us, look forward to your inquiries!
Mūsu pakalpojums
1.24-hours online consulation service is avaliable here. Once you have any questions, just contact us and our professional staff will reply very quickly.
2. Market information also will be provided.Since we are an experienced supplier of hoist parts, the market information about hoist and hoist parts will be offered as long as you contact us and ask for it.
Our Features
— ELEVATOR SAFETY DEVICES;
— FAST DELIVERY BASED ON GOODS IN STOCK;
— BEST QUALITY BASED ON CAREFUL INSPECTION;
— EXPORT DIRECTLY WITHOUT 3RD COMPANY.
Related Parameters
Modelis
|
Safety net weight (KG)
|
Sleeve(KG)
|
Lever(KG)
|
Transition(KG)
two
|
SAJ30
|
32.88
|
0.8
|
1
|
|
SAJ30
|
33.185
|
0.8
|
1
|
|
SAJ40-1.2A
|
46.4
|
0.9
|
1
|
|
SAJ40-2.0、SAJ50
|
45.3
|
0.9
|
1
|
7.7
|
SAJ60、SAJ70
|
49.2
|
0.9
|
1
|
7.7
|
Bieži uzdotie jautājumi
J: Vai jūs esat tirdzniecības uzņēmums vai ražotājs?
A: Mēs esam rūpnīca.
J: Cik ilgs ir jūsu piegādes laiks?
A: Generally it is 10-15days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
J: Kādi ir jūsu maksāšanas noteikumi?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.We also accept other payment.
Īsa informācija
Stāvoklis: Jauns
Izcelsmes vieta: Šanhaja, Ķīna (kontinentālā daļa)
Model Number: SC200/200
Rated Loading Capacity(kg): 2000kg
Hoisting Speed:33m/min
Max Lifting Height:200m
Dimension(L*W*H): 3m*1.5m*2.5m
Loder Weight: 3 T
Pēcpārdošanas serviss: Inženieri ir pieejami tehnikas apkalpošanai ārzemēs
Krāsa: Oranža
Type: Standard
Part name: Emergency Brake Lifting Equipment
Name: Constrction Hoist Safety Device
Application: Bulidings,Elevator and so on
Materiāls: tērauds
Rated braking: 0.5—-2.0 M/S
Cage: Double
Motor power: 2*3*11kw
Usage: Construction Enginering
Apraksts
The SAJ 50/40 Safety Device for construction hoist anti-fall is important to ensure the safe operation of the construction elevator safety components. Construction elevator is running, when the cage due to failure caused by stall falling, anti-fall safety device start action and the brake torque is gradually increased, at a certain distance within the cage will stop smoothly on the rail frame,so as to ensure the safety of construction hoist or passenger hoist.
SAJ 50/40 drošības ierīce ir vissvarīgākā drošības ierīce zobratu un bagāžnieku celtnieku pacēlājā, kas var novērst būra ātruma pārsniegšanu un efektīvi samazināt būra nomešanas negadījumu.
Funkcijas
1. Inner brake drum and Centrifugal speed limiter replace the original casting processing which may cause the security risks. We use the forging die process. 2. We use the sliding bearing of the leading enterprises and the preferred Great wall high quality grease. We use the special oil groove in the pinion shaft and add the silencing anti-vibration mounting In the inner structure, which can reduce the incidence of noise greatly. 3. We use the specialized production of spring pieces and friction plates in China, which can ensure the products’ stable retarding torque and open speed, quick reaction and smooth brake.
Pasūtīšanas informācija
Norādot modeli un kalibrēto izslēgšanas ātrumu, veicot pasūtījumu, kalibrētais izslēgšanas ātrums (m/s) tiks noteikts atbilstoši lifta darbības ātrumam un klientu vajadzībām.
