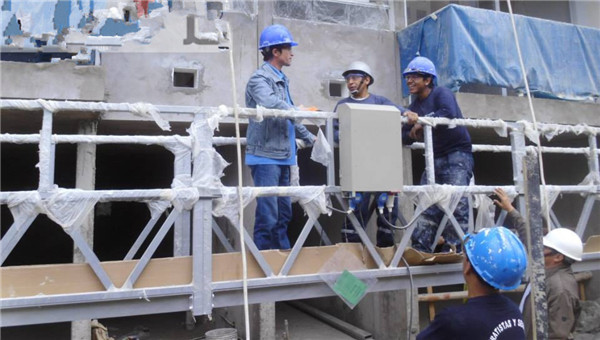

1000 kg 7.5 m x 3 sections aluminum alloy suspended working platform ZLP1000

1000 kg 7.5 m x 3 Sections Aluminum Alloy Suspended Working Platform ZLP1000

Descriptions:

Applications:

1. Cleaning and maintaining of the exterior wall of high-rise building.

2. Painting, decoration and refurbishing of exterior walls.

3. Installation projects and other construction working of outer walls of high-rise building.

4. Aerial working of ship, large tower, bridge, dams and large chimneys.

5. Install and maintain for high-rise building elevator hoistway, shipbuilding industry, seagoing vessel,

warships welding maintain.

Technical Parameter

Property Model No.		ZLP1000
Nominālā slodze (kg)		1000
Celšanas ātrums (m/min)		8～10
Motora jauda (kW)		2×2.2 50HZ/60HZ
Bremzēšanas griezes moments (Km)		16
Tērauda troses leņķa regulēšanas diapazons (°)		3°–8°
Attālums starp divām tērauda trosēm (mm)		≤100
Priekšējās sijas nominālā stiepšanās (mm)		1500
Suspending platform	Bloķēšana	Alumīnija sakausējums
	Platformas plauktu skaits	Viens plaukts
	Platformas Nr.	3
	G × P × A (mm)	(2500×3)×690×1300
	Svars (kg)	455 kg
Piekares mehānisms (kg)		2 × 175 kg
Pretsvars (kg) pēc izvēles		25 × 44 gab.
Tērauda troses diametrs (mm)		8.6 / 9.1
Maksimālais pacelšanas augstums (m)		300
Motora griešanās ātrums (r/min)		1420
Voltage(v) 3PHASES		220V/380V/ 415V

Detalizēts produkta apraksts

Material: Aluminum Alloy
Color: Silver
Voltage: 380V/415V/440V/220V, 50/60Hz (can Be Customized)
Hoist Power: 2.2kw
Lifting Height: 300 Mts (Max.)
Diameter Of Steel Rope: 9.1mm
