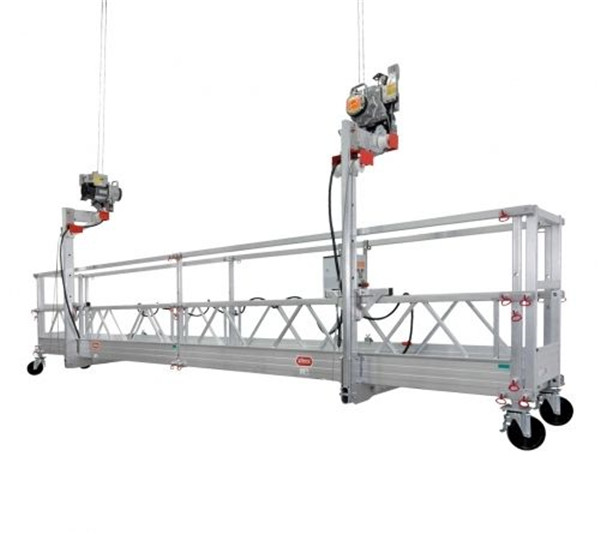

ZLP Series Suspended Access Equipment ZLP500 , ZLP630 , ZLP800 , ZLP1000

Quick Detail:

1. Model No.: ZLP500, ZLP630 , ZLP800, ZLP1000
2. Brand Name: HAOKE
3. Material: Steel / Aluminum
4. Appearance: Plastic Spray Painted / Hot Galvanized
5. Lifting Height: Maximum 300 Mts
6. Voltage: 220V,380V,400V,415V,440V ,3-phase.50HZ/60HZ

Applications:

1.Cleaning and maintaining of the exterior wall of high-rise building.

2.Painting, decoration and refurbishing of exterior walls.

3. Installation projects and other construction working of outer walls of high-rise building.

4. Aerial working of ship, large tower, bridge, dams and large chimneys.
5. Install and maintain for high-rise building elevator hoistway, shipbuilding industry, seagoing vessel, warships welding maintain.

Specifications:

Property Model No.		ZLP500	ZLP630	ZLP800	ZLP1000
Rated load(kg)		500	630	800	1000
Lifting speed(m/min)		9～11	9～11	8～10	8~10
Motor power(kw)		2×1.5 50HZ/60HZ	2×1.5 50HZ/60HZ	2×1.8 50HZ/60HZ	2×2.2 50HZ/60HZ
Brake torque(Km)		16	16	16	16
Steel rope angle adjusting range(°)		3°- 8°	3°- 8°	3°- 8°	3°- 8°
Distance between two steel rope(mm)		≤100	≤100	≤100	≤100
Rated stretch of front beam(mm)		1500	1500	1500	1500
Suspending platform	Locking	Aluminum alloy	Aluminum alloy	Aluminum alloy	Aluminum alloy
	Nr.Of platform rack	Single rack	Single rack	Single rack	Single rack
	Nr.Of platform	2	3	3	3
	L×W×H(mm)	(2000×2)×690×1300	(2000×3)×690×1300	(2500×3)×690×1300	(2500×3)×690×1300
	Weight(kg)	350 Kg	375 Kg	410 Kg	455kg
Suspending mechanism(kg)		2×175 Kg	2×175 Kg	2×175 Kg	2×175 Kg
Counterweight(kg) optional		25×30pcs	25×36pcs	25×40pcs	25×44pcs
Diameter of steel rope(mm)		8.3	8.3	8.6	8.6
Max Lifting height(m)		300	300	300	300
Motor rotation speed(r/min)		1420	1420	1420	1420
Voltage(v) 3PHASES		220V/380V/ 415V	220V/380V/ 415V	220V/380V/ 415V	220V/380V/ 415V

Our advantages:

1. Professional quality: we have 9 years experience of making suspended working platforms in China.
2. Competitive price: we can do you a favor based on our factory status especially for big quantity.
3. Fast delivery: our monthly stock more than 1000 sets.
4. Considerate service: our excellent sales team keep the whole day email contact and 24 hours TradeManager online. Engineers keep prompt reply for any questions.
5. We can customized the platform including parts according to your requirements.

Detailed Product Description

Material: Steel, Aluminum Alloy
Color: Silver, Red, Yellow, Black (can Be Customized)
Lifting Height: Maximum 300m
Motor Power: 1.5kw, 1.8kw, 2.2kw
Diameter Of Steel Rope: 8.3mm , 8.6mm, 9.1mm
Motor Rotation Speed: 1420r/min
