Aluminum facade cleaning lift scaffolding , hanging basket hoist gondola

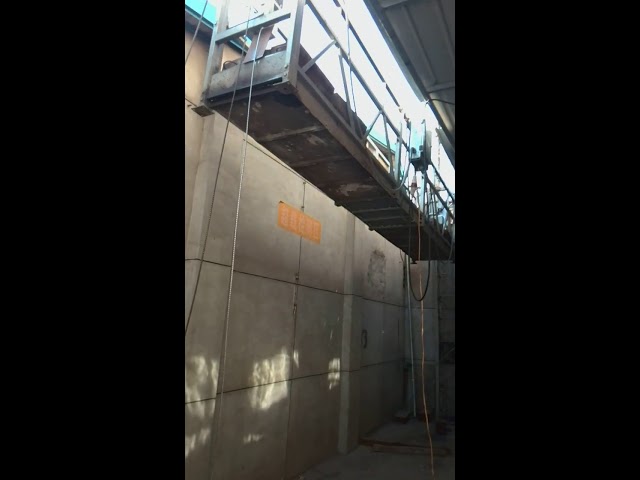

1.Structure of Suspended Platform

(1) WorkingPlatform
(2) Hoist Assembly
(3) Satety Lock
(4) Electric Control Panel
(5) Suspension Mechanism(6) Cable(7) Wire rope

2. Usage of Suspended platform

(1) Facade maintenance,paiting and cleaning of high building
(2) Window cleaning and installation
(3) Construction inspection and maintenance of big-size tanks,chimneys ,dams, bridges
(4) Maintenance , cleaning ,painting of big ship

Technical Parameters

Item	ZLP250	ZLP500	ZLP630	ZLP800	ZLP1000
Rated Loading	250KG	500KG	630KG	800KG	1000KG
Speed	~9.5 m/min	~9.5 m/min	~9.5 m/min	~8.5m/min	~8.3m/min
Size	L :1m ,2m,2.5,3m; W: 0.69m; H: 1.18m

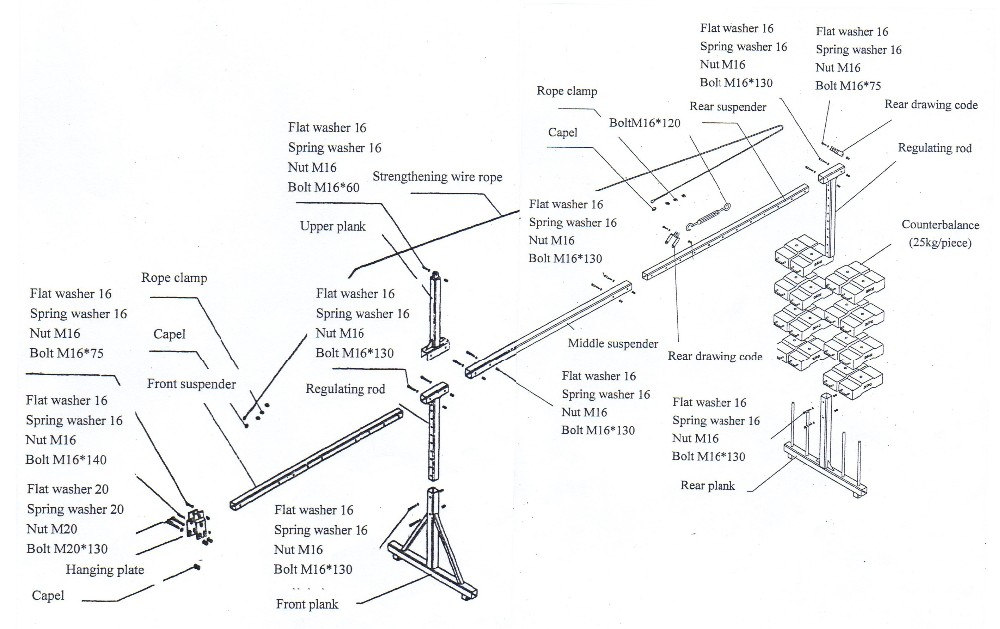

Suspension Mechanism	Rated exerted length of front beam			1.1m~1.5m
Suspension Mechanism	Terrain clearance of front beam			1.45m~1.75m
Hoist
Item	LTD63			LTD80 a drive	LTD80 s drive
Voltage	220v/ 415v/380v 50/60 hz 3 phase / single phase
Power	2*1.5kw			2*1.8/2.0kw	2*2.2kw
Speed	1400 n/min

Safety lock
Item	Anti-proofing LS30
Angle of tilted locking rope	3°~8°
Allowable impact force	30KN
Wire rope
Type	4*31SW+FC-φ8.3	4*31SW+FC-φ8.6
Control panel
Brand	CHNT	Schneider
Conter weight
Iron cast	Cement	Hot galvnized steel with concrete

1. Suspension mechanism &Platform

Surface treatment with hot galvanized craft, the steel is not easy to rust .
The service life can be as long as 15 years , more durable than spraying process.

2. Hoist

With famous brand of motor , large braking torque
Inside gear is 100% copper, the warranty is 5 years.
unique anti-rope clamping device , when rope is clamped ,alarming rings, hoist will stop working , safety is increased, maintenance cost is reduced
Lubrication oil is 220#industry gear oil.Lubrication oil is 220#industry gear oil.

3. Safety lock

The lock cylinder uses special stainless steel , with strong impact resistance, higher
toughness,wear resistant, long services life ,safe and reliable

4. Electric control system

The electric components uses famouse brand CHNT, SCHNEIDER,quality is guaranteed
Perfect circuit design, including leakage protection, current overload protection,emergency braking,operate simply.

5. Wire rope

Our supplier is Jiangsu Fasten Steel Cord Co.,Lt—Chinese famous brand”FASTEN”

6. Cable

Using national standard cable 2.5*3+1.5*2, using life is longer
