3 phase rope suspended platform hot galvanized 7.5m zlp800a for wall painting - Suspended working platform,gondola suspended platform,gondola working platform

3-fazna vrvna viseča ploščad vroče pocinkana 7,5 m zlp800a za barvanje sten

3-fazna vrvna viseča platforma vroče pocinkana 7,5 m Zlp800a za stensko barvanje

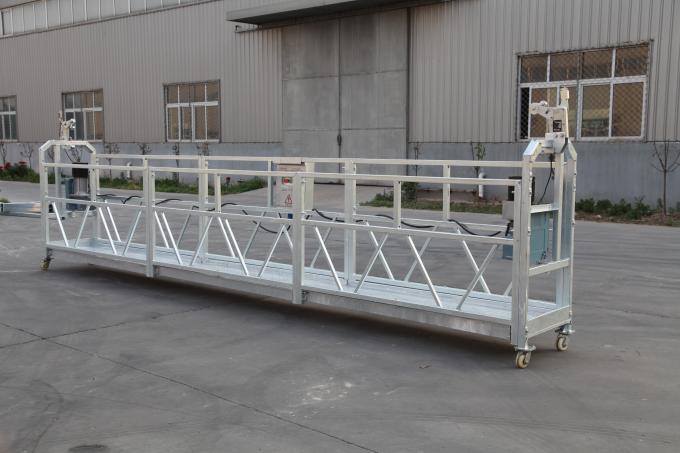

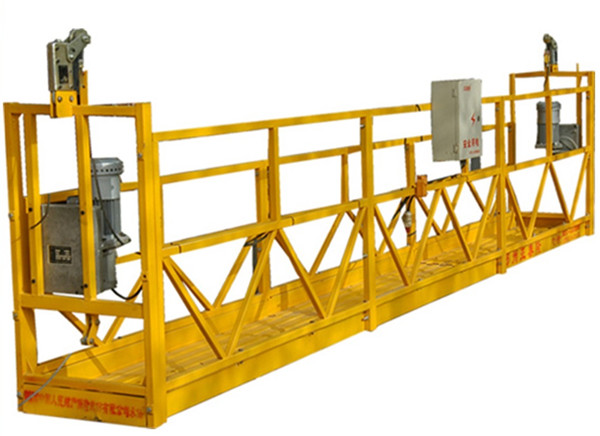

415V / 50HZ / 3 Phase Hot Galvanized 7.5M ZLP800A Rope Suspended Platform For Wall Painting

SUCCESS has been engaged in manufacturing Rope Suspended Platform for over 14 years. Haoke manufactured rope suspended platform is from high-grade raw material and latest technology.The platforms are inspected properly by our expert professionals. Due to features like durability and sturdiness, the offered product is exceptionally valued by our precious clients. Apart from this, the offered range is available with us in various sizes and shapes at affordable prices.

Features:

1.Strong design
2.Dimensionally accurate
3.Resistivity to corrosion
4.Easy to shift & operate
5.Safe to use
6.Reliability
7.Adjustable working height
8.Length of the platform can be adjusted

ZLP800A Rope Suspended Platform Technical Data

Platform size	2.5m x 2+1.5m+1m
Material of platform	Hot galvanized
Balance Weight	1000 kgs
Nazivna obremenitev	800 kgs
Ascend Speed (working speed)	9-11 m/min

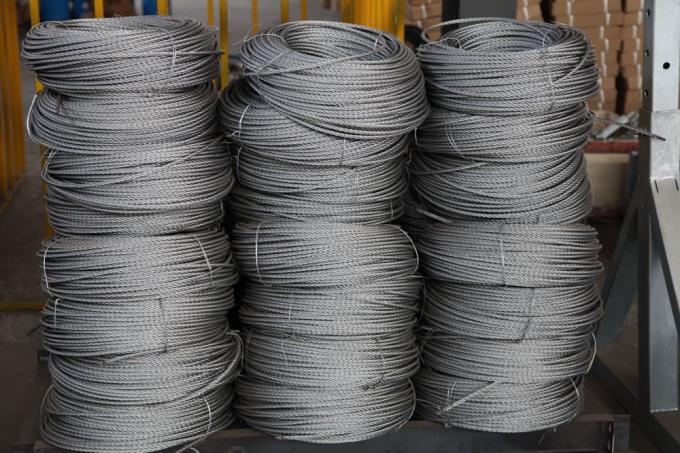

Wire rope	4×31 Sw –FC- 8.6/9.1mm
Rated Lifting force	15KN

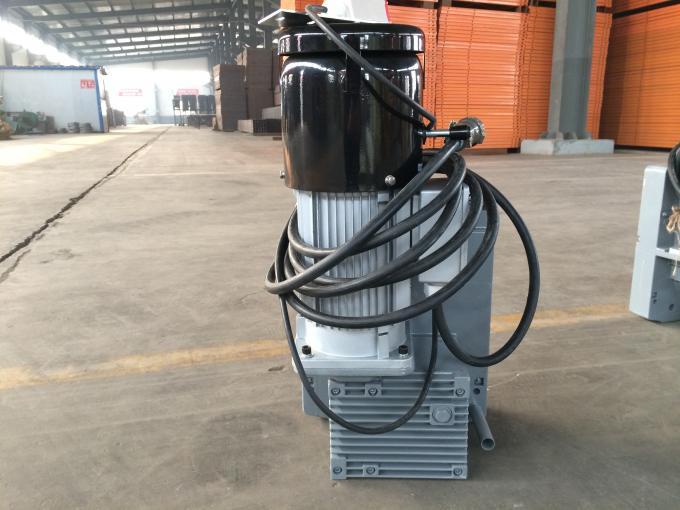

Elektromotor
Power	1.8kWx 2
Voltage	AC 415v 3 phase
Breaking	15NM
Safety lock	Tilt proof safety lock (2 No.s)

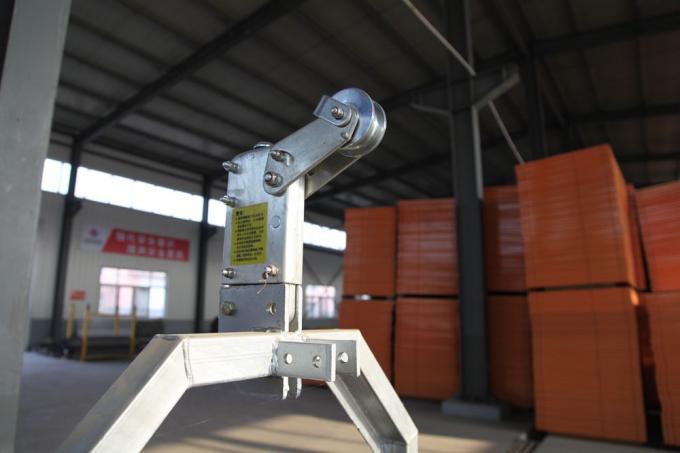

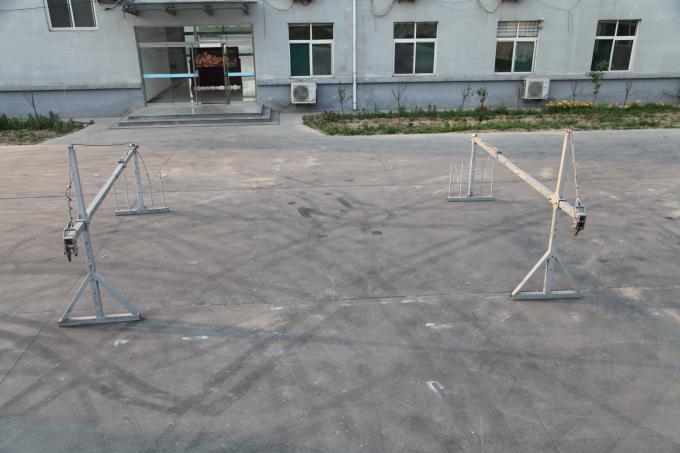

Suspended Mechanism
Height Adjustment	1.15m – 1.8 m
Front Beam extension	1.2~1.7m
Wheels	Alternative

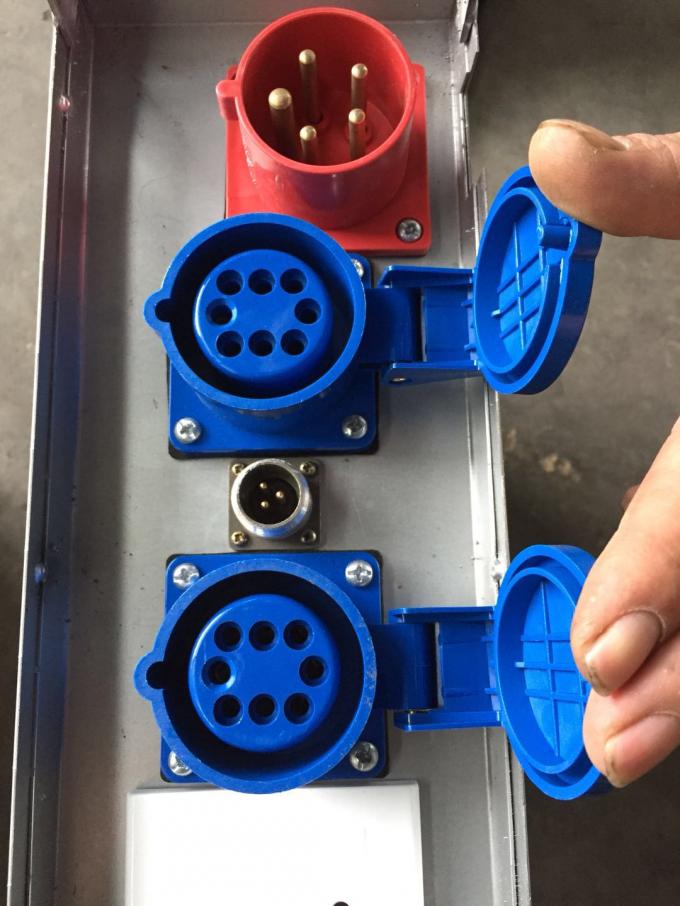

Control Panel
Lock&Key	Included
Contactor	Schneider
Protection factor	protect against water&dust
