SAJ60-2.0 Most Popular Best Selling Emergency Brake Construction Hoist Parts Anti Fall Elevator Safety Device
SAJ construction elevator anti-fall safety device is important to ensure the safe operation of the construction elevator safety components. Construction elevator is running, when the cage due to failure caused by stall falling, anti-fall safety device start action and the brake torque is gradually increased, at a certain distance within the cage will stop smoothly on the rail frame, so as to ensure the safety of crew and equipment.
Product Details Show

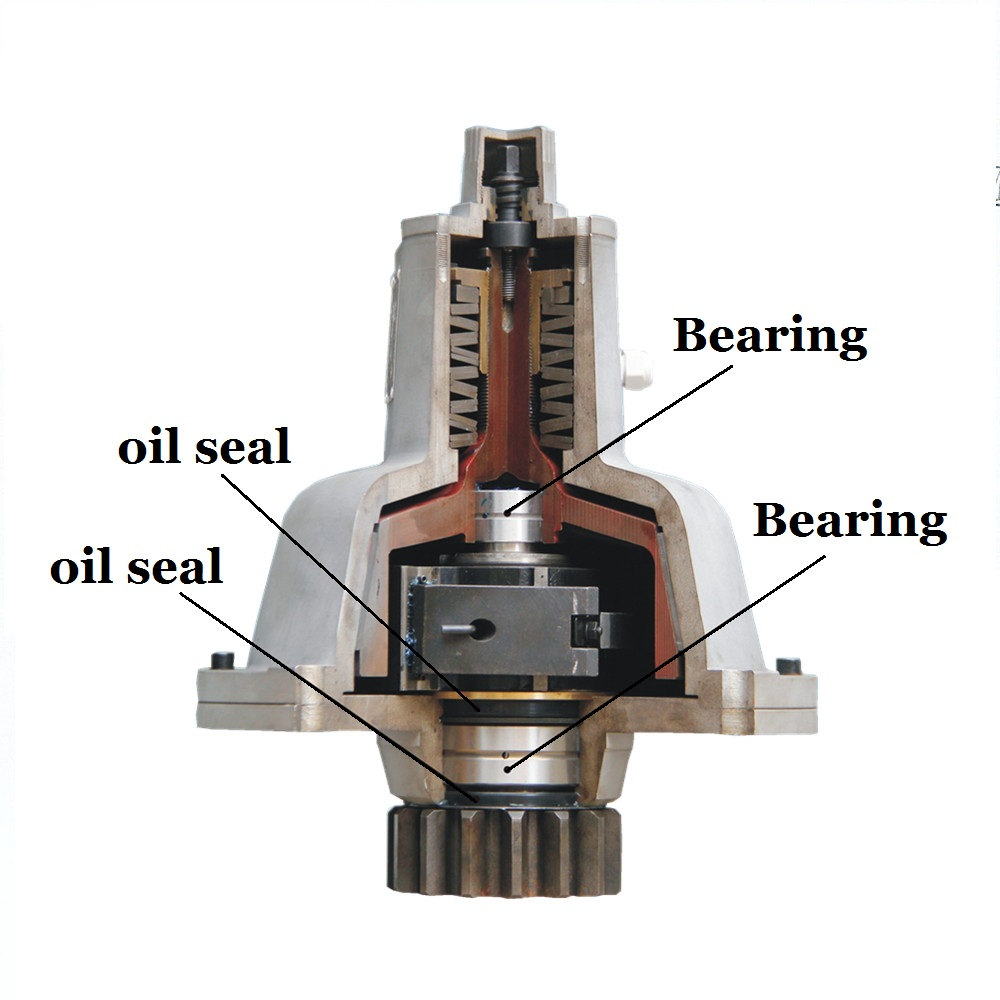

1. Hoist elevator safety device with needle bearing, high carrying capacity, abrasion resistance, low noise.
2. bearing at both ends of high quality seals, dust, grease and maintain, can meet the lubrication and Hoist elevator safety device within one year of the need.

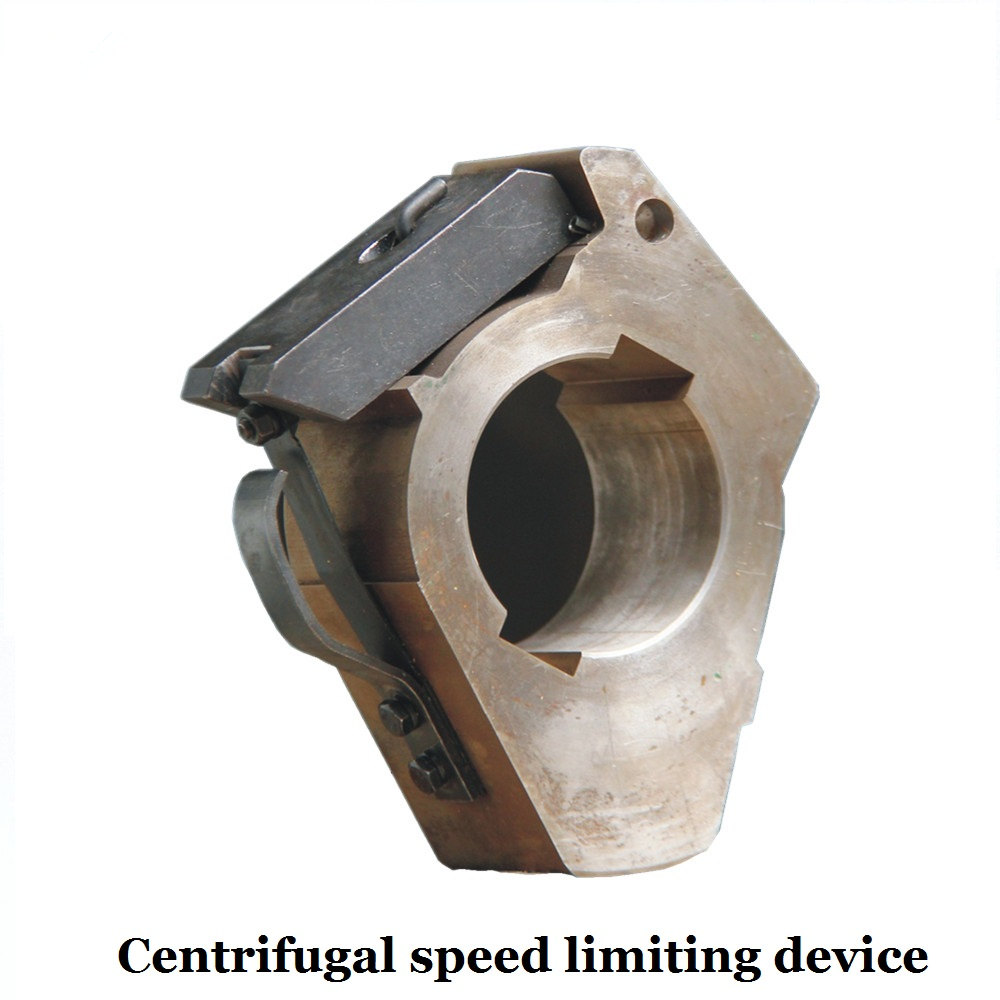

3. after the centrifugal speed limiting device of dynamic balance test can reduce vibration, reduce noise, improve the Hoist elevator safety device period of use.
SAJ60-2.0 Most Popular Best Selling Emergency Brake Construction Hoist Parts Anti Fall Elevator Safety Device
Product parameter

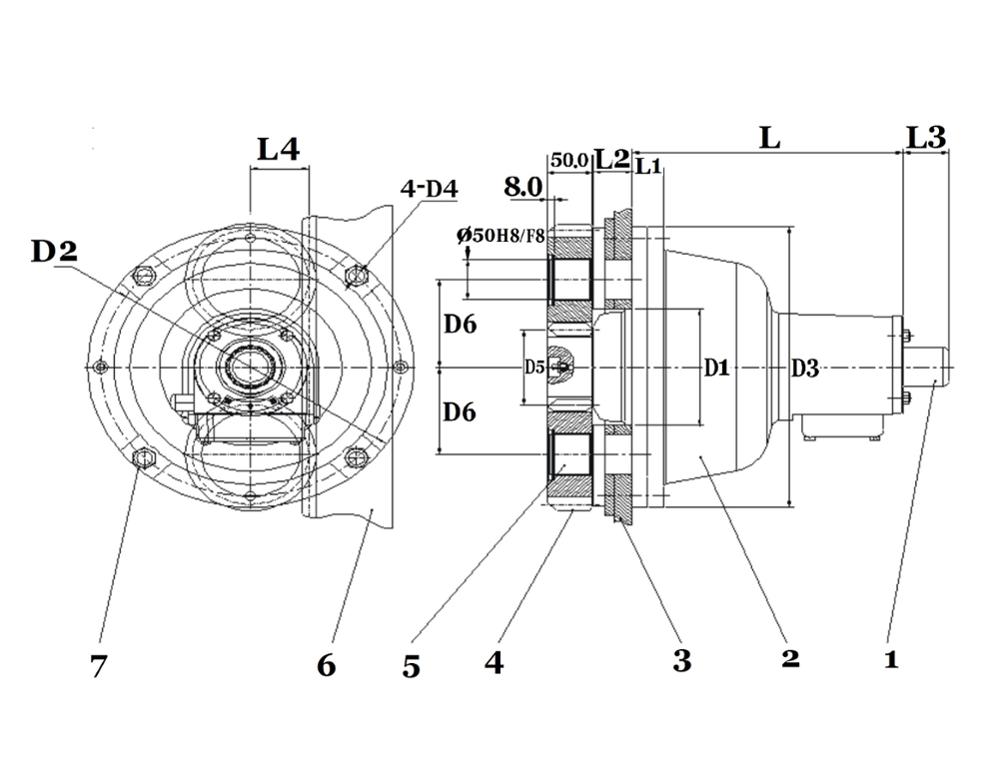

The structure of hoist elevator safety device
1. The release mechanism of the tail part 2. hoist elevator safety device
3. safety device mounting plate 4. gear 5. transition gear shaft
6. rack 7.4 M14/M16 high strength bolts (purchased by the user)
| Model | SAJ30- 1.2 | SAJ40-1.2 | SAJ40-1.4 | SAJ40-1.6 | SAJ40-2.0 | SAJ50-1.2 | SAJ50-2.0 | SAJ60- 1.2 | SAJ60-2.0 | |
| Rated braking load(KN) | 30 | 40 | 50 | 60 | ||||||
| Rated braking speed(m/s) | 1.2 | 1.2 | 1.4 | 1.6 | 2.0 | 1.2 | 2.0 | 1.2 | 2.0 | |
| weight(KG) | 37 | 48.5 | 54.5 | 56.5 | ||||||
| D1 | ¢150f9 | ¢140f9 | ||||||||
| D2 | ¢284 | ¢330 | ||||||||
| D3 | ¢310 | ¢357 | ||||||||
| D4 | ¢15 | ¢17 | ||||||||
| D5 | ¢120 | ¢96 | ||||||||
| D6 | / | 113.1±0.027 | ||||||||
| L | 261 | 291 | 320 | |||||||
| L1 | 38 | 37 | ||||||||
| L2 | 43 | 44 | 44 | |||||||
| L3 | 0 | 0 | 55 | |||||||
| L4 | 60 | 64 | ||||||||
| Z | 15 | 12 | ||||||||
자주 묻는 질문
1. Repair and maintenance:
Hoist elevator safety device Must be done once a year overhaul and maintenance, even you did not use it in last year.
2. Service life:
In the standard maintenance and repair case, ourl safety device is service life of 5 years, Even though it can also be used 5 years later, in order to guarantee the safety, you must also replace it.
3.Delivery time
within three days after receipt of the payment
Quick Details
Place of Origin: shanghai, China (Mainland)
Name: Emergency Brake Safety Device
Color: Orange
Model: SAJ60-2.0
Weight: 56.5kg
KN: 60
Material: Steel
Rated Loading: 3000kg
Braking speed(m/s): 2.0
Certification: ISO9001:2008
Keyword: Emergency Brake Safety Device
