single phase suspended wire rope platform 800 kg 1.8 kw , lifting speed 8 -10 m/min - Suspended working platform,gondola suspended platform,gondola working platform

Plateforme suspendue à câble monophasée 800 kg 1,8 kW, vitesse de levage 8-10 m/min

Plateforme suspendue monophasée à câble métallique 800 kg 1,8 kW, vitesse de levage 8-10 m/min

Descriptions:

Haoke Building Machinery Equipment Co., Ltd. is founded in 2005. It is a leading high-tech enterprise

specialized in research, development and manufacturer of Electrical Suspended Platform, Construction

Material Hoist, Construction Elevator, Tower Crane, Self-propelled Jack Gantry Lift, as well as other various

kinds of construction equipment. We are located in Shandong Gaotang county of China that is a famous

hometown of painting and calligraphy.

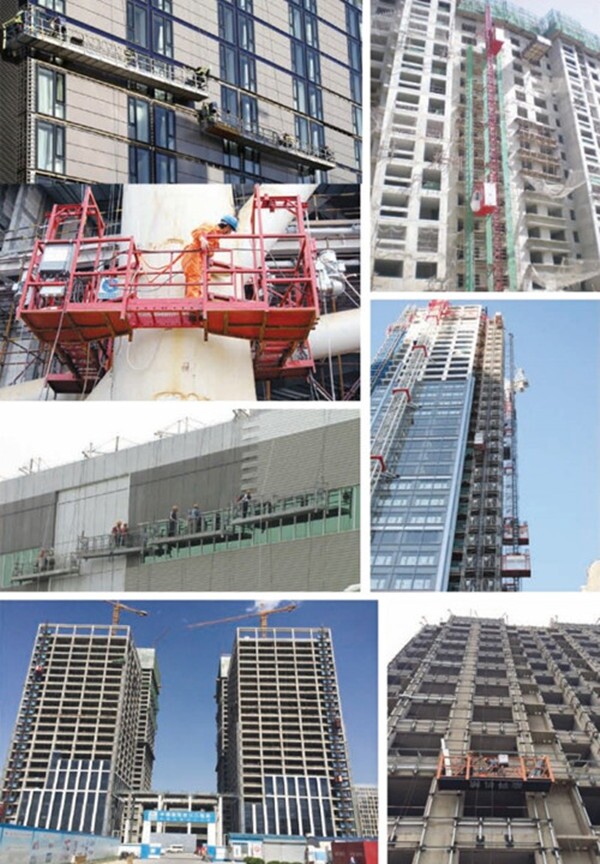

Applications:

1. Cleaning and maintaining of the exterior wall of high-rise building.

2. Painting, decoration and refurbishing of exterior walls.

3. Installation projects and other construction working of outer walls of high-rise building.

4. Aerial working of ship, large tower, bridge, dams and large chimneys.

5. Install and maintain for high-rise building elevator hoistway, shipbuilding industry, seagoing vessel, warships welding maintain.

Technical Parameters

Model No.		ZLP800
Rated load(kg)		800
Lifting speed(m/min)		8～10
Motor power(kw)		2×1.8 50HZ/60HZ
Brake torque(Km)		16
Steel rope angle adjusting range(°)		3°- 8°
Distance between two steel rope(mm)		≤100
Rated stretch of front beam(mm)		1500
Suspending Platform	Locking	Aluminum alloy
	Nr.Of platform rack	Single rack
	Nr.Of platform	3
	L×W×H(mm)	(2500×3)×690×1180
	Weight(kg)	410 Kg
Suspending mechanism(kg)		2×175 Kg
Counterweight(kg) optional		25×40pcs
Diameter of steel rope(mm)		8.6
Max Lifting height(m)		300
Motor rotation speed(r/min)		1420
Voltage(v) 3PHASES / SINGLE PHASE		220V/380V/415V, 50/60Hz (customized)

competitive advantages

1.Absolutely guarantee life safety during Aerial working

Safety lock fasten the steel rope immediately once the suspended platform tilts or the steel rope slips out of the hoist;Electric control system is designed with leakage protection, over-heat protection, current overload protection and brake stop;

Good-quality steel wire rope, safety rope and cable.

2. Stable performance: raise up and lower down smoothly

3. Modular design. Easy to disassemble, assemble operate and maintain.

4. Lifting height can be adjusted according to requirement (Maximum 300 Meters)

5. Working voltage and frequency can be adjusted (220V/380V/415V etc.)

6. Suspended platform for special usage can be customized (circular, L shape, U shape, etc)

7. Professional quality, competitive price, fast delivery, good services.
