10m 800kg suspended scaffolding systems aluminum alloy with lifting height 300m - Suspended working platform,gondola suspended platform,gondola working platform

10m 800kg Hängegerüstsysteme Aluminiumlegierung mit Hubhöhe 300m

10m 800kg verschobene Gerüstsystem-Aluminiumlegierung mit Hubhöhe 300m

Descriptions:

Quick Detail:

1. Model No.: ZLP800

2. Brand Name: SUCCESS

3. Material: Steel / Aluminum alloy

4. Appearance: Aluminum

5. Capacity Loading: 800 KG

6. Lifting Height: Maximum 300 Mts

7. Motor rotation speed(r/min): 1420

Applications

1.Cleaning and maintaining of the exterior wall of high-rise building.

2.Painting, decoration and refurbishing of exterior walls.

3. Installation projects and other construction working of outer walls of high-rise building.

4. Aerial working of ship, large tower, bridge, dams and large chimneys.

5. Install and maintain for high-rise building elevator hoistway, shipbuilding industry, seagoing vessel, warships welding maintain.

Technical Parameters

Model No.		ZLP800
Rated load(kg)		800
Lifting speed(m/min)		8～10
Motor power(kw)		2×1.8 50HZ/60HZ
Brake torque(Km)		16
Steel rope angle adjusting range(°)		3°- 8°
Distance between two steel rope(mm)		≤100
Rated stretch of front beam(mm)		1500
Suspending Platform	Locking	Aluminum alloy
	Nr.Of platform rack	Single rack
	Nr.Of platform	3
	L×W×H(mm)	(2500×3)×690×1180
	Weight(kg)	410 Kg
Suspending mechanism(kg)		2×175 Kg
Counterweight(kg) optional		25×40pcs
Diameter of steel rope(mm)		8.6
Max Lifting height(m)		300
Motor rotation speed(r/min)		1420
Voltage(v) 3PHASES/SINGLE PHASE		220V/380V/415V, 50/60Hz (customized)

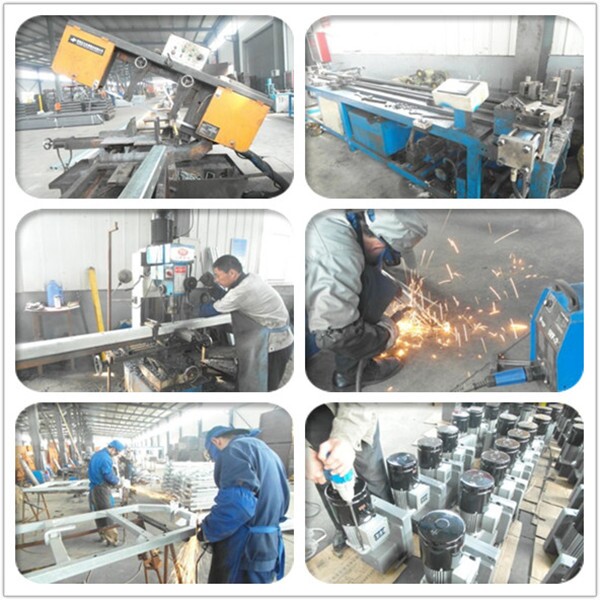

Competitive advantages

1.Absolutely guarantee life safety during Aerial working

Safety lock fasten the steel rope immediately once the suspended platform tilts or the steel rope slips out of the hoist;Electric control system is designed with leakage protection, over-heat protection, current overload protection and brake stop;

Good-quality steel wire rope, safety rope and cable.

2. Stable performance: raise up and lower down smoothly

3. Modular design. Easy to disassemble, assemble operate and maintain.

4. Lifting height can be adjusted according to requirement (Maximum 300 Meters)

5. Working voltage and frequency can be adjusted (220V/380V/415V etc.)

6. Suspended platform for special usage can be customized (circular, L shape, U shape, etc)

7. Professional quality, competitive price, fast delivery, good services.
